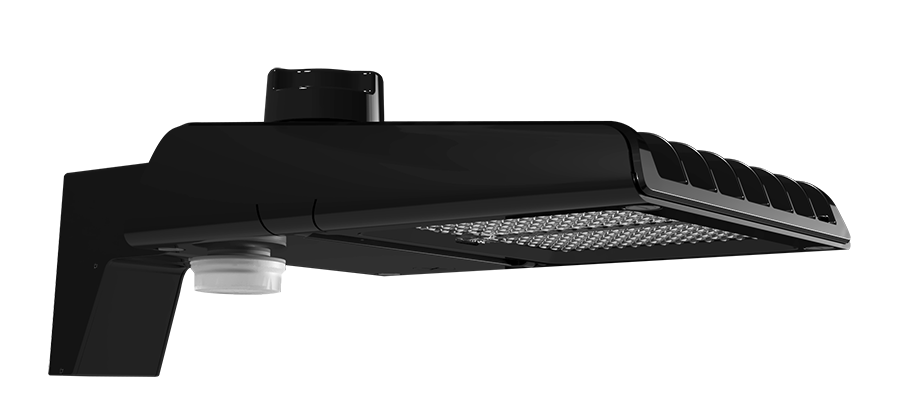

A22-100B/480/MVS
A22-100B/480/MVS
100W 3000/4000/5000K
- DLC Premium listed
- Adjustable Universal Pole Mount
- 7-Pin Receptacle with Shorting Cap
- IP66 Rated
- 100,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 100/80/60W |
| Color Temp | 3000/4000/5000K |
| Lumens | 9,050-14,468 lm |
| Efficacy | 131.2-157.9 lm/W |
| Color Accuracy | 80-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 61.7-99.8W |
Dimensions
Weight: 11.2 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
100W/80W/60W (factory default: 100W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
100W/80W/60W (factory default: 100W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-8JX8VS
DLC Product Code: S-8JX8VS
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
80W: Replaces up to 350W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
60W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
80W: Replaces up to 350W Metal Halide (MH) or 250W High Pressure Sodium (HPS)
60W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
Electrical
Driver
Constant Current, Class 1, 480V, 50/60 Hz:
100W: 480V: 0.21A
80W: 480V: 0.17A
60W: 480V: 0.13A
100W: 480V: 0.21A
80W: 480V: 0.17A
60W: 480V: 0.13A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
13.72% at 480V
Power Factor
93.4% at 120V, 0% at 277V
7-Pin Receptacle with Shorting Cap
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
Surge Protection
6 kV
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
BUG Rating
Type 3
100W: B2 U0 G2
80W: B2 U0 G2
60W: B2 U0 G1
100W: B2 U0 G2
80W: B2 U0 G2
60W: B2 U0 G1
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Polycarbonate lens
Housing
Die-cast aluminum
Effective Projected Area
1 Fixture: 0.3
2 Fixtures: 0.7
3 Fixtures: 1.2
4 Fixtures: 1.2
2 Fixtures: 0.7
3 Fixtures: 1.2
4 Fixtures: 1.2
Finish
Formulated for high durability and long-lasting color
Gaskets
High-temperature silicone gaskets
Green Technology
Mercury and UV free. RoHS-compliant components.
Sensor Settings
Sensor Connection Type
Pogo pin
Max Mounting Height
50 ft
Detection Range
50 ft diameter mounted at 50 ft
Sensor Technology
Microwave (MVS)
Default Setting
Motion Sensitivity: High
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight: Disabled
Brightness when triggered : 100%
Hold time: 20 minutes
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Daylight: Disabled
Adjustable Sensor Settings?
Yes, using the MSR1 Remote (sold separately)
Standby to dim: 10%/20%/30%/50%
Standby time: 0s/10s/30s/1min/5min/10min/30min/60min/+∞
Standby to dim: 10%/20%/30%/50%
Standby time: 0s/10s/30s/1min/5min/10min/30min/60min/+∞
Daylight Threshold
2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
