Field Adjustable Light Output:
300W/240W/200W (factory default 300W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Distribution selectable by Type III, Type IV, and Type V (factory default Type III)

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Ingress protection rating of IP66 for dust and water

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-VGDW5W (Architectural Flood and Spot Luminaires)
DLC Product Code: S-9BB2ZY (Outdoor Pole/Arm-Mounted Area and Roadway Luminaires)

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Constant Current, Class1, 480V, 50/60 Hz:
300W: 480V: 0.70A
240W: 480V: 0.55A
200W: 480V: 0.45A

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

12.5% at 480V

96.7% at 480V

Yes

Yes

L/N-PE: 6 kV, L-N: 6 kV

ANSI C136.41 7-pin receptacle, compatible with wireless control systems

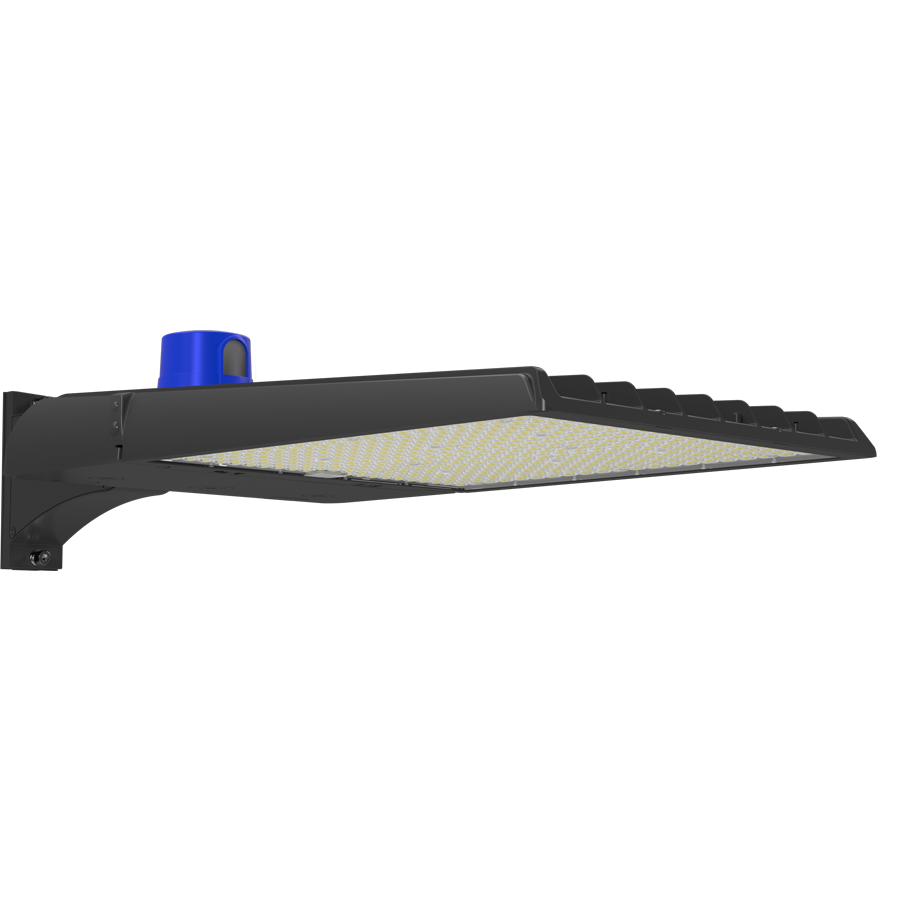

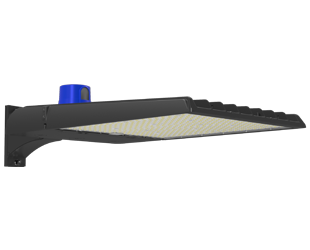

480V 3-Pin Twistlock photocell included. Photocell is only compatible with 480V.

Type III/IV/V Distribution Adjustable:
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
The Type IV distribution (also known as a Forward Throw) is especially suited for illuminating the perimeter of parking areas and for intersections. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
The Type V distribution produces light in a wide and uniform 360° pattern that is perfect for large outdoor areas such as parking lots, corporate parks and retail settings

B3-U0-G3

Long-life, high-efficacy, surface-mount LEDs

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

The minimum starting temperature is -40°F (-40°C)

Suitable for use in up to 122°F (50°C)

Clear polycarbonate lens

Die-cast aluminum

3G vibration rating per ANSI C136.31

1 fixture: 0.87 ft²
2 fixtures at 90°: 1.26 ft²
2 fixtures at 180°: 1.75 ft²
3 fixtures at 90°: 2.13 ft²
4 fixtures at 90°: 2.13 ft²

Formulated for high durability and long-lasting color

High-temperature silicone

Mercury and UV free. RoHS-compliant components.

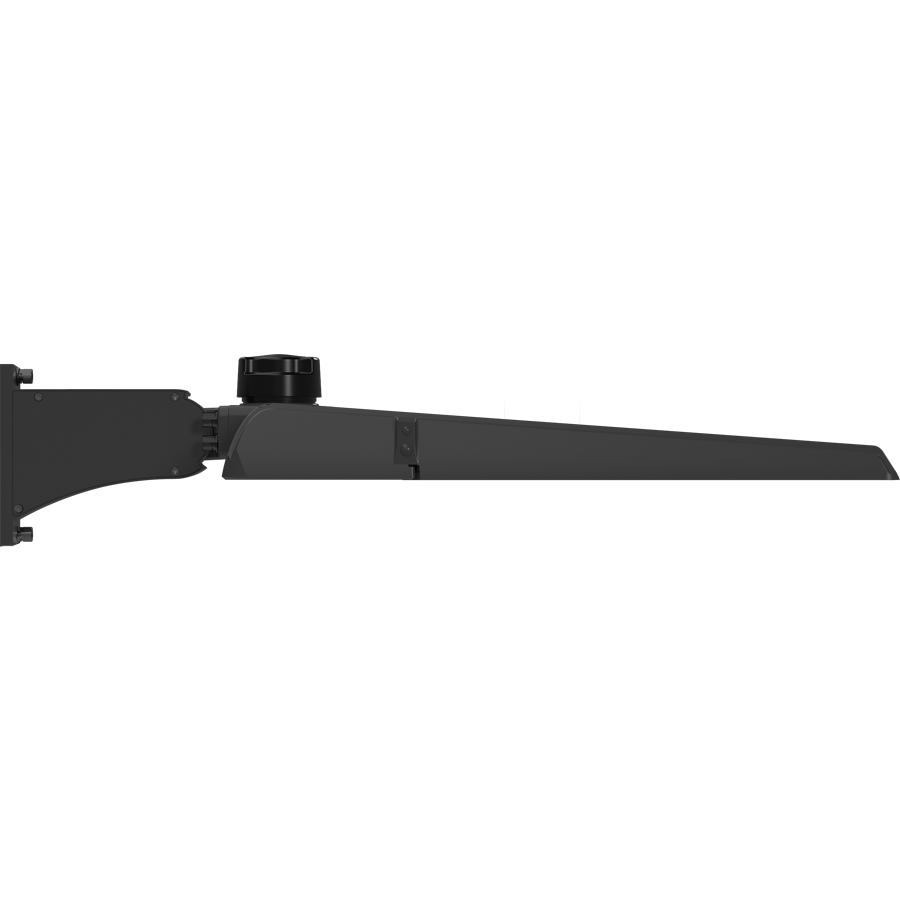

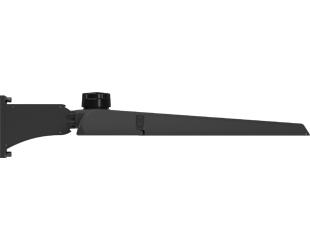

Adjustable universal pole mount (standard). Slipfitter and wall mount accessory available.

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
