ARMSV24
Dimensions
Weight: 2.6 lbs
Technical Specifications
Other
Threads
1/2" NPS at the fixture Side
Construction
Diameter
Diameter of the tube is 1"
Accessory Only
LPACK LED fixture sold separately
Arm

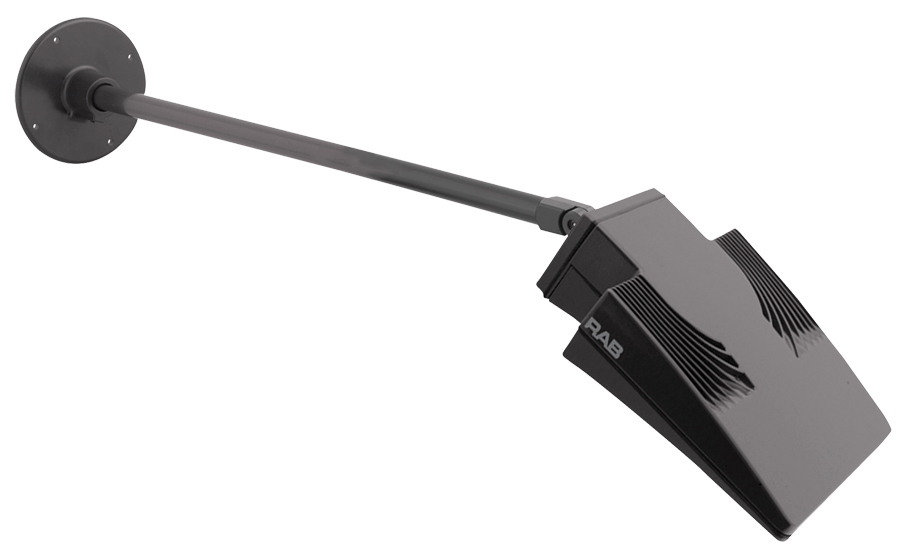

Use to extend fixtures away from wall and to adjust the aiming angle of the light fixture. Great for facade and sign lighting
.
Swivel Plate
Die cast aluminum Swivel Plate adjusts 30° in both directions and mounts to RAB's WPLED10, WPLED13, WPLED18, WPLED20 and WPLED26 fixtures
Construction
All aluminum construction 1" diameter, thick extension rod. Secures to Wall Mounting Plate with (2) stainless steel set screws.
Max Weight Capacity
9.0 lbs
Installation
Mounting
The wall plate does not mount to a junction box but directly to the mounting surface with the proper hardware for the surface
Compliance
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
