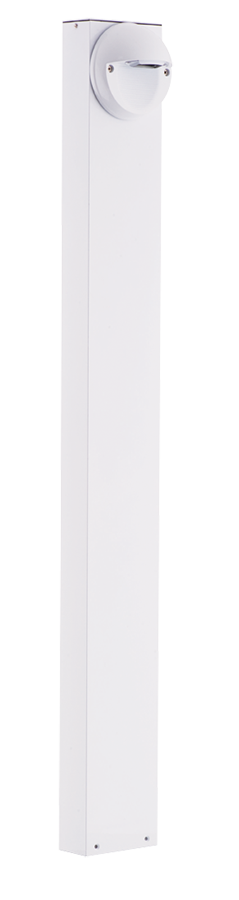

BLEDR5-42NW/PC
BLEDR5-42NW/PC
- High output LED
- 100,000-hour life
- Superior heat sinking with die cast aluminum housing
- Meets ADA Requirements
Performance
| Watts | 5W |
| Color Temp | 4000K (Neutral) |
| Lumens | 159 lm |
| Efficacy | 30.6 lm/W |
| Color Accuracy | 85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.1A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 5.2W |

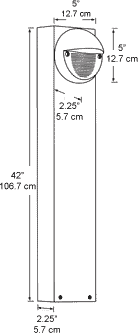

Dimensions
Weight: 11.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Driver
Multi-chip 5W high output long life LED Driver Constant Current, Class II, 120V-240V, 50/60 Hz, 400mA
Photocell
120V Button photocell included. Photocell is only compatible with 120V.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Thermal Management
Cast aluminum Thermal Management system for optimal heat sinking. The BLED is designed for cool operation, most efficient output and maximum LED life by minimizing LED junction temperature.
LED Characteristics
Lumen Maintenance
The LED will deliver 70% of its initial lumens at 100,000 hours of operation
