BOA6-60D10

Spec Sheet Instructions Spec Sheet

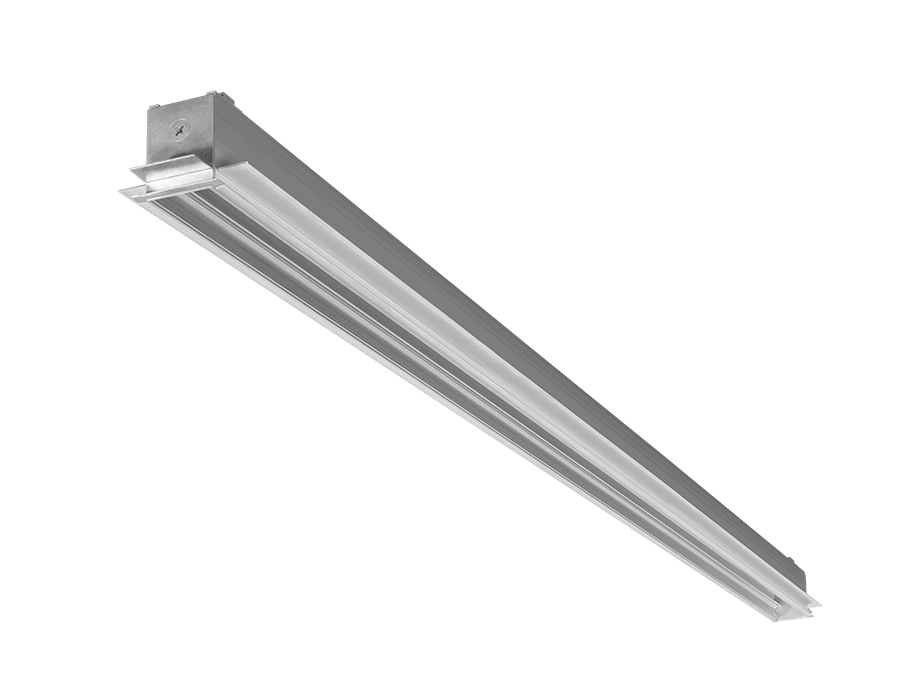

BOA6-60D10

6 ft. Recessed Linear Slot Rough-In includes housing and driver

Offers a trimless design for a seamless appearance

3-step binning for color consistency

0-10V dimming, standard

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	60W
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.43A
208V	0.23A
240V	0.21A
277V	0.20A
Input Watts

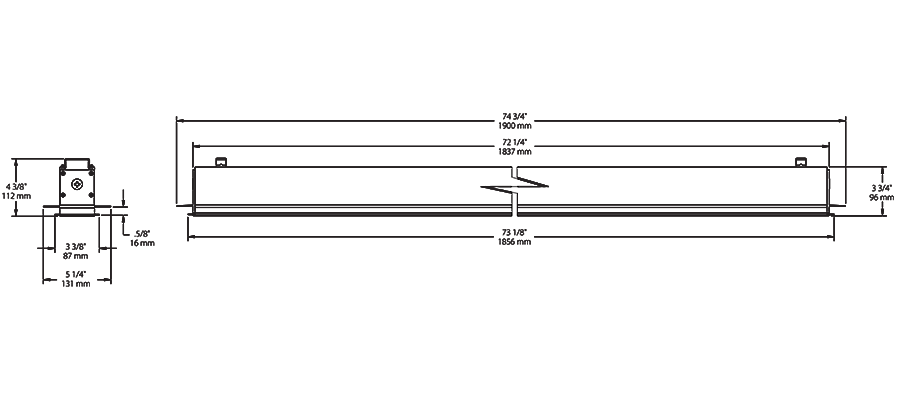

Dimensions

Weight: 19.7 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations. Recommended for indoor use only.

IC Rated

Suitable for direct contact with insulation

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Optical

Reflector

40° reflector

Construction

Housing

Precision extruded aluminum

Lens

High-transmission, microprismatic acrylic lens for smooth light distribution and uniformity

Finish

Natural aluminum

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Special Order

Available in 6-8 weeks by special request

Recessed Rough-In

This Recessed Rough-In must be ordered with Recessed Finishing Section in order to make a complete fixture. See here for 6 ft Recessed Finishing Section.

Electrical

Drivers

120 - 277V, 0 - 10V dimming down to 10%, 93.7% power factor, 1 kV surge protection

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Installation

Mounting

Trimless flange for seamless spackling to edge of fixture
