BOA8LED-40YN
BOA8LED-40YN
- 8 ft. Recessed Linear Slot Finishing includes LED, gear tray and lens
- Offers a trimless design for a seamless appearance
- 3-step binning for color consistency
- 0-10V dimming, standard
- 100,000-Hour LED lifespan
Performance
| Watts | |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | |
| Efficacy | |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts |

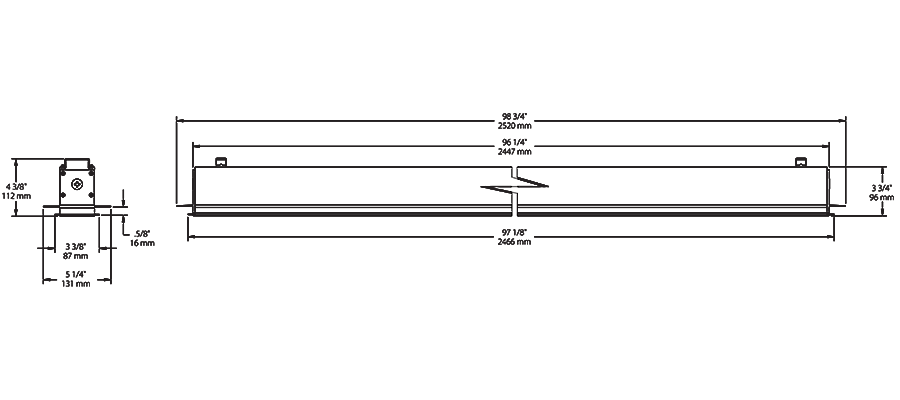

Dimensions
Weight: 8.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations. Recommended for indoor use only.
IC Rated
Suitable for direct contact with insulation
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Optical
Reflector
40° reflector
Aperture
2.5"
LED Characteristics
LEDs
Discrete LEDs on PCB board
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Lens
High-transmission, microprismatic acrylic lens for smooth light distribution and uniformity
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recessed Finishing Section
This Recessed Finishing Section must be ordered with Recessed Rough-In Housing in order to make a complete fixture. See here for 8 ft Recessed Rough-In.
Electrical
Drivers
120 - 277V, 0 - 10V dimming down to 10%, 93.7% power factor, 1 kV surge protection
