BULL3-120
Dimensions
Weight: 34.9 lbs
Technical Specifications
Construction
Finish
Formulated for high durability and long-lasting color

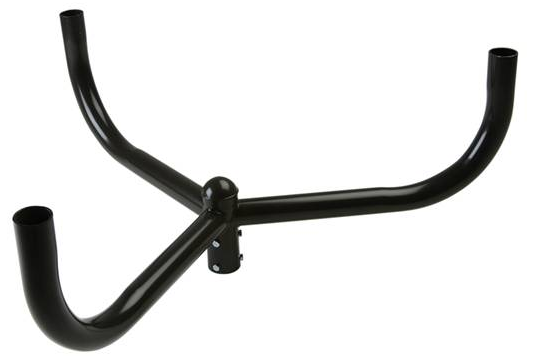

Bullhorns
3 at 120° tenons for slipfitters. BULLHORNs fit 2 3/8" (6cm) O.D. tenons and accommodate 2 3/8" (6cm) slip fitters. Steel tubing.150" and.200" thick welded with (4) 3/8" bolts for securing to pole.
Slipfitters & Wall Brackets
3/16" thick steel with 1/2" nuts and bolts
Bracket EPA
1.9.
Weight
43 lbs
Maximum Weight Capacity
75 lbs per arm (100 MPH zone).
EPA Maximum Capacity
4.0 per arm
Other
Patents
The designs of fixtures are protected under U.S. and international intellectual property laws.
Electrical
THD
11.2% at 120V, 15.944% at 277V
