C6R12835UNVW

Spec Sheet IES File Dimmer Compatibility List Photometrics Report Energy Star Instructions Cut Out Template Spec Sheet EZ Layout

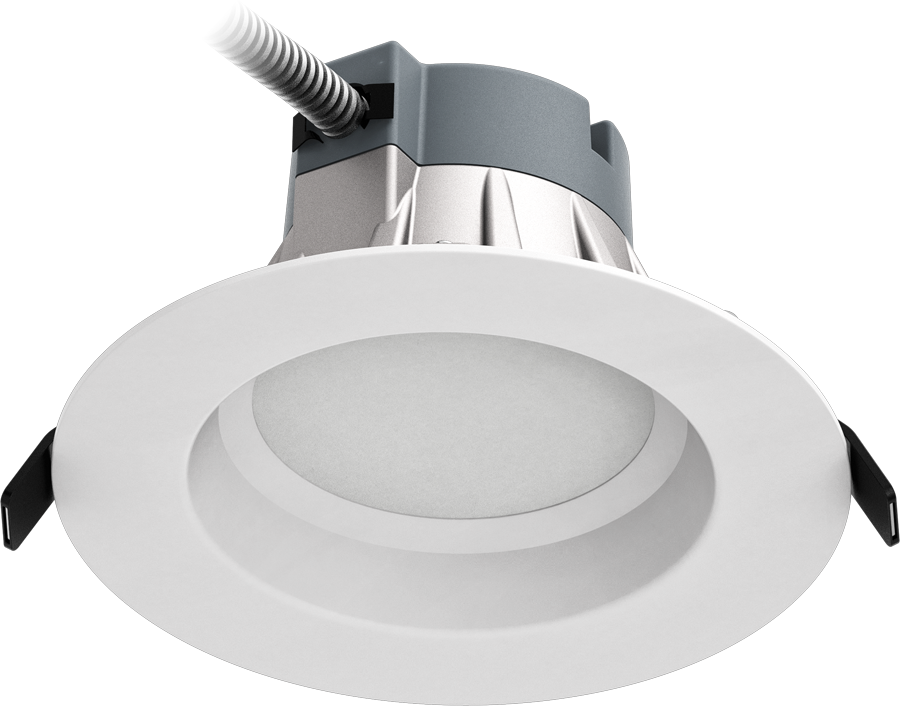

C6R12835UNVW

High Performance LEDs for commercial applications

Replacement for traditional compact fluorescent recessed downlights

Compatible with new construction or retrofit installations

UL wet and Energy Star rated

Meets air-tight requirements

Matte white smooth trim finish

Available in 3 color temperatures: 3000K, 3500K, 4000K

0 - 10V dimmable

Spring loaded retention clips

25-inch Flexible conduit

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	12W
Color Temp	3500K (Warm Neutral)
Lumens	1,069 lm
Efficacy	87.5
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.11A
208V	0.065A
240V	0.055A
277V	0.045A
Input Watts	10.4W

EZ-Layout

Create Custom Lighting Layout

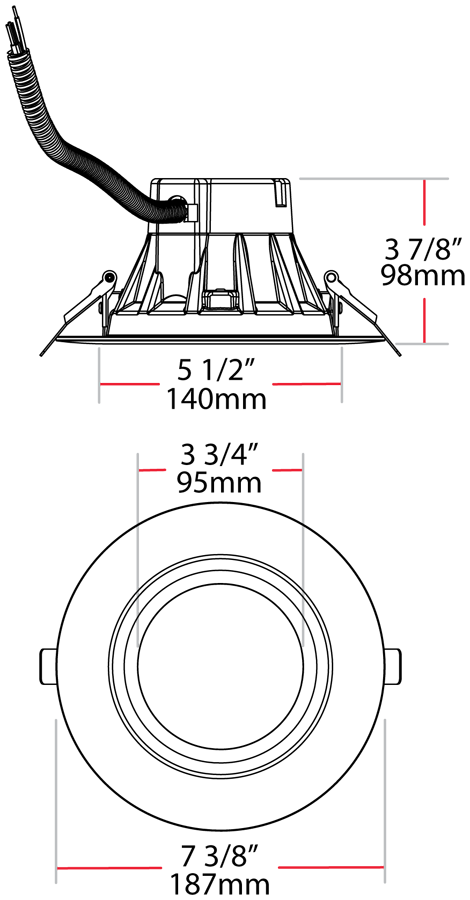

Dimensions

Weight: 1.4 lbs

Technical Specifications

Compliance

UL Listed & UL Classified

Suitable for wet locations

Energy Star Approved

ENERGY STAR® Version 2.2 Certified

Certification Model Number

DLC0003

Energy Star ID

2349548

IC Rated

Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations.
Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Electrical

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

<20%

Power Factor

≥0.9

THDi

Produces less than 20% THD

≥0.9

Input Voltage

120V through 277V

Flicker

Silent and flicker free operations of less than 30%

Operating Frequency (Hz)

50/60Hz

Performance

Lifespan

50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

18W CFL

Construction

Air Tight

Housing certified Air Tight as per ASTM-E283

Housing

Made from precision die-cast aluminum construction, dissipates heat from electrical components

Cold Weather Starting

The minimum starting temperature is -22°F (-30°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Green Technology

Mercury and UV free. RoHS-compliant components.

Lens

Diffuse Polystyrene lens produces smooth uniform light that is glare free

Finish

Matte White

LED Characteristics

Beam Angle

90°±10°

LEDs

Long-life, high-efficacy, surface-mount LEDs

Installation

Mounting

Robust retention clips spring loaded tabs ensure the fixture is securely installed. Can be installed in 1/4" to 1 1/2" thick ceilings.

Other

Template

Template included for easy ceiling cut out

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Accessories

DLPLATE/T: New Construction or Remodel Plate for T-Grid ceilings for use with 6" and 8" Models
DLPLATE/SJ: New Construction Plate for Stud/Joist mounting for use with 6" and 8" Models
DL6-8GOOF/R/P: 8" Goof Ring for 6" Commercial Downlight
