CANVAS78SFN/PCS
CANVAS78SFN/PCS
- Replaces 250W MH Floodlights
- NEMA Type 6H x 4V ideal for signage & facades
- Ultra-low field-to-beam ratio concentrates light where it's required
- Microprismatic diffusion lens optimizes light output without glare
- Superior thermal management with patent-pending "Airflow" technology
- 100,000-Hour LED lifespan
Performance
| Watts | 78W |
| Color Temp | 4000K (Neutral) |
| Lumens | 10,098 lm |
| Efficacy | 112.2 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.82A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 90W |

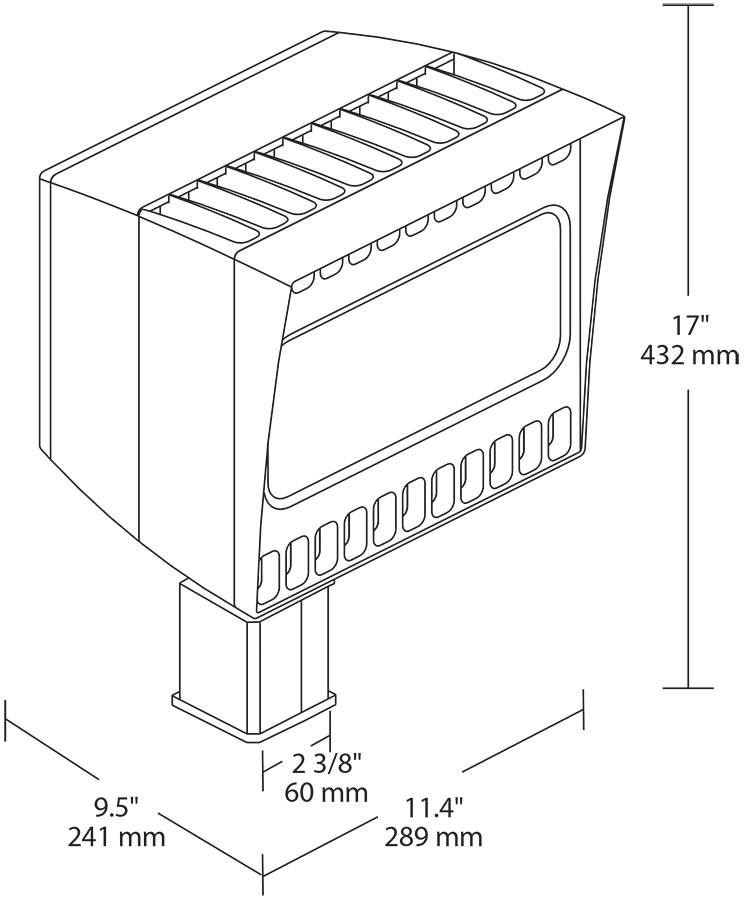

Dimensions
Weight: 26.6 lbs
Technical Specifications
Electrical
Drivers
Constant current, Class 2, 100-277V, 50/60 Hz, 6kV Surge Protection, 720mA, 100-277V: 0.4A, THD <20%, Power Factor 89.7%
Photocell
120V Swivel photocell included. Photocell is only compatible with 120V.
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IP Rating
Ingress protection rating of IP66 for dust and water
Construction
Effective Projected Area
EPA = 1.2
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
