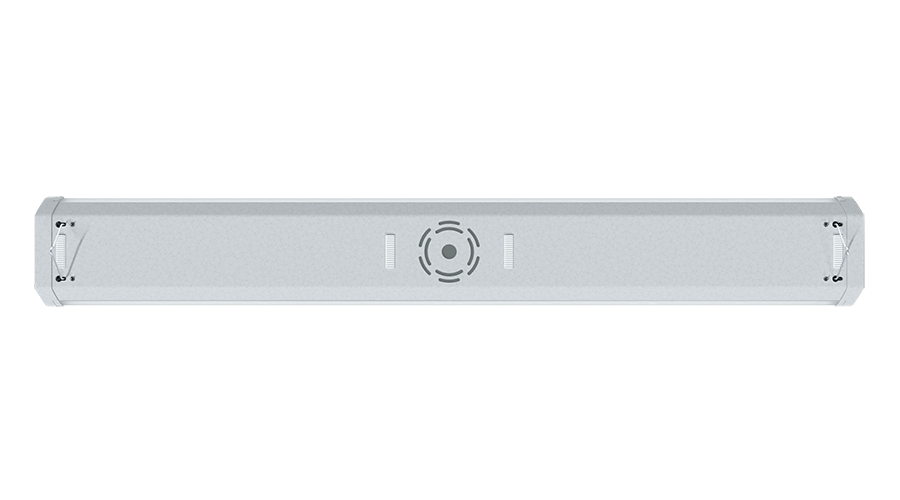

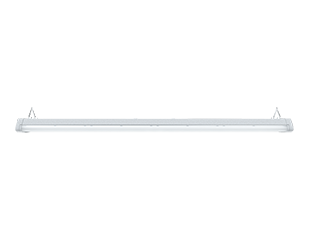

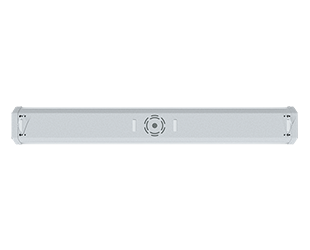

CW4
44W 3500/4000/5000K
- Affordable, easy to use LED wrap fixture
- 0-10V dimming, standard
- 100,000-Hour LED lifespan
Performance
| Watts | 44/33/22W |
| Color Temp | 3500/4000/5000K |
| Lumens | 3,105-6,191 lm |
| Efficacy | 134.8-145.3 lm/W |
| Color Accuracy | 84-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | 0.38A/0.28A/0.18A |
| 208V | 0.24A/0.19A/0.014A |
| 240V | 0.21A/0.16A/0.11A |
| 277V | 0.16A/0.13A/0.09A |
| Input Watts | 22.5-45.1W |
Dimensions
Weight: 8.9 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
4 ft: 40/30/20(factory default 40W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
4 ft: 40/30/20(factory default 40W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-B8YJDF
DLC Product Code: S-B8YJDF
Electrical
Driver
44W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.38A, 208V: 0.24A, 240V: 0.21A, 277V: 0.16A
33W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.28A, 208V: 0.19A, 240V: 0.16A, 277V: 0.13A
22W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.18A, 208V: 0.14A, 240V: 0.11A, 277V: 0.09A
33W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.28A, 208V: 0.19A, 240V: 0.16A, 277V: 0.13A
22W: Class P, Constant Current, 120-277V, 50/60 Hz, 120V: 0.18A, 208V: 0.14A, 240V: 0.11A, 277V: 0.09A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.82% at 120V, 9.99% at 277V
Power Factor
99.7% at 120V, 96.2% at 277V
Surge Protection
DM: 1 kV
CM: 2 kV
CM: 2 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Sustainable, biocomposite resin manufactured with coffee chaff, waste seashells, and recycled plastic.
Reflector
Refractive Lens
Lens
Diffused Polymethyl Methacrylate (PMMA)
Finish
Naturally occurring, beige, speckled pattern
Green Technology
Mercury free. Made with RoHS-compliant components and biorenewable components.
Installation
Mounting
Surface mount and VHOOKs standard. Fixtures designed for end to end connection. Through wiring kit not included.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products

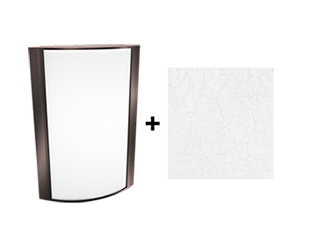

HALV18L935-CW-A/BL
