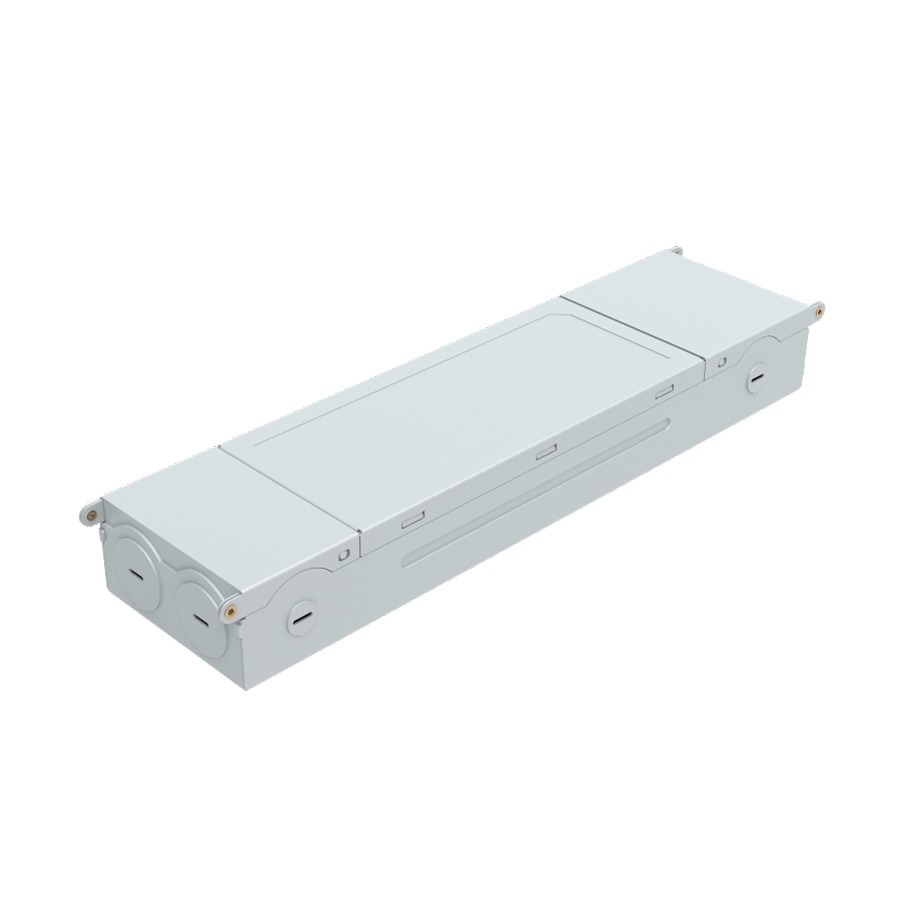

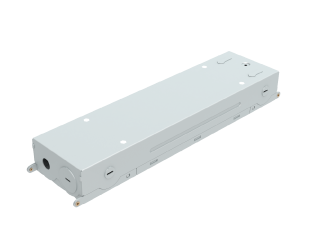

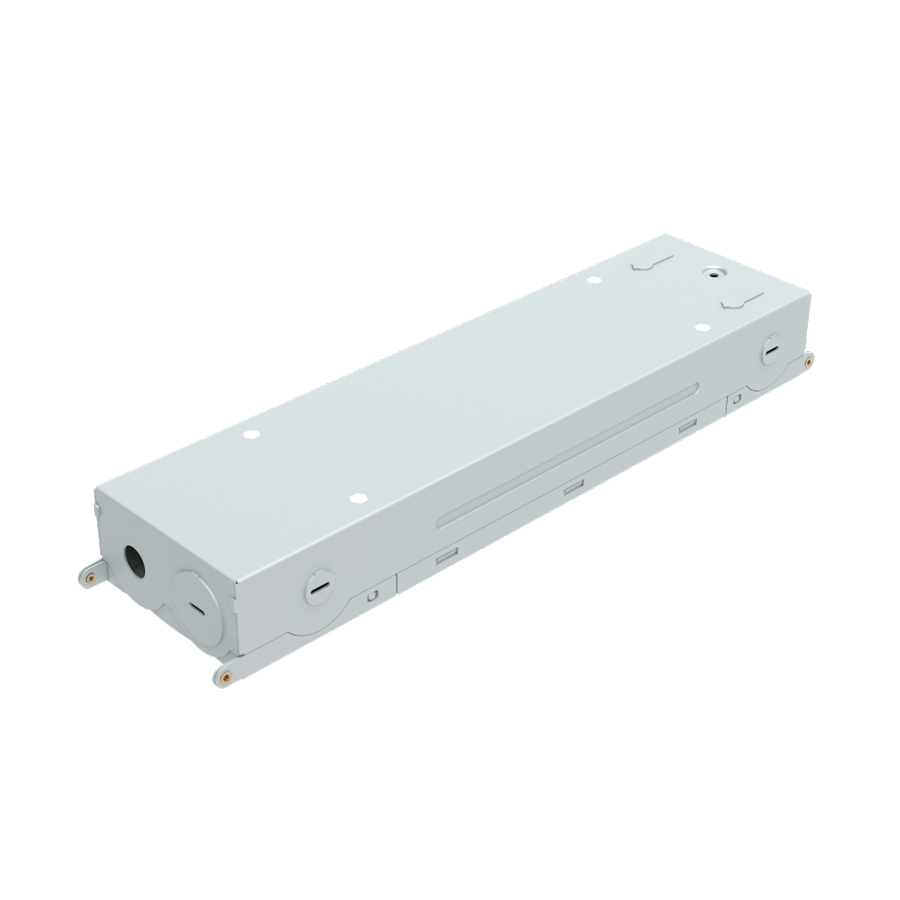

DAISYDRIVER/D10
Performance
| Watts | 92W |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan |
| Type | |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 92W |
Dimensions
Technical Specifications
Performance
Product Type
Daisy Wafer Driver
Input Wattage
92W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
<20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 5% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
Input Voltage
120-277V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
790mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
≤30%
Installation
Remote Driver/Junction Box
Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.
Construction
Shape
Rectangle
Finish
Gray
Enclosure Material
Metal
Lens Finish
Frosted
Compliance
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Listings
UL Recognized
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
California Title 20 Compliant
No
California Energy Commission (CEC) Status
Not Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
