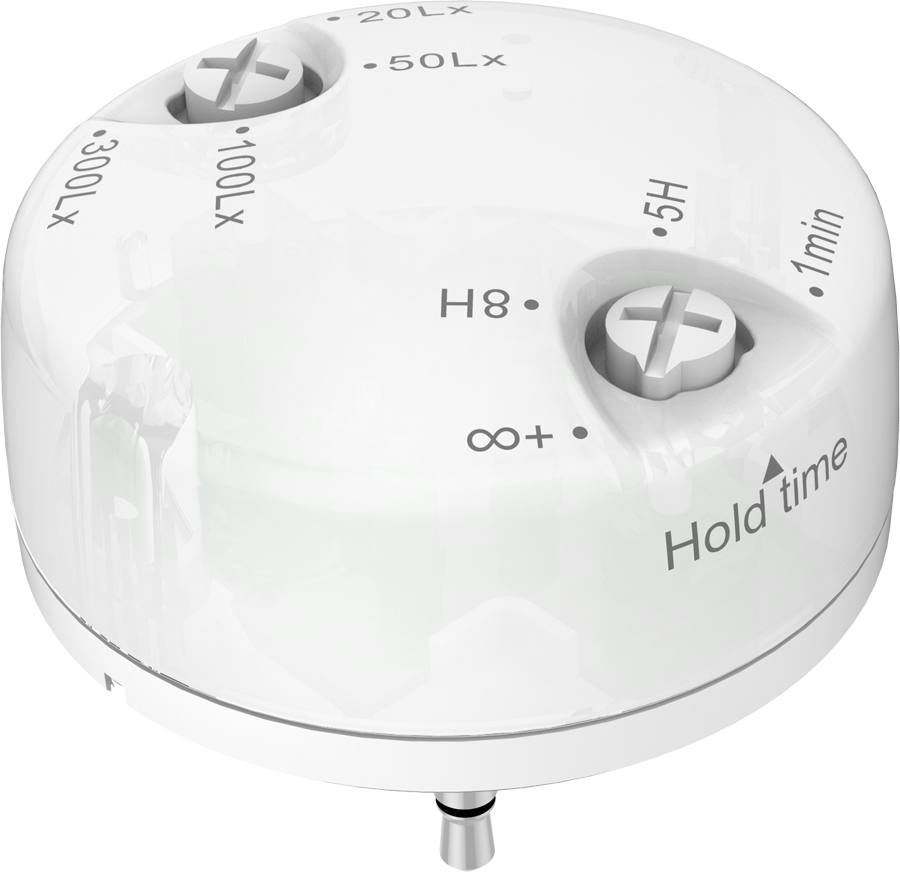

DAYLIGHT-S
- Natural light detection
- On-off functionality
- Hold time: 1 minute, 5 hours, or 8 hours
- Standard 3.5mm AUX port connection
- Threshold levels at 20 lx /50 lx /100 lx /300 lx
- Suitable for use in enclosed luminaire
- Do not expose directly to water
- Use only one module per lamp

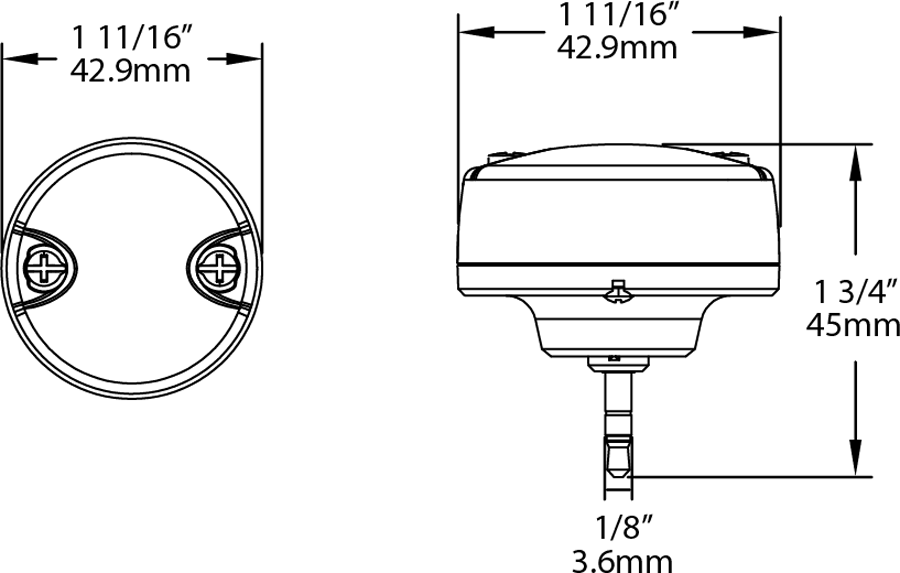

Dimensions
Technical Specifications
Performance
Product Type
DAYLIGHT Sensor
L70 Lifespan
50,000 Hours
Electrical
Input Voltage
15VDC
Max Input Current
0.1A
Max Output Current
0.02A
Lux Options
20/50/100/300lux
Hold Time Options
1min/5hr/8hr
Input Frequency
5.8 GHz +/- 75MHz
Output Voltage
10VDC
Operating Frequency
5.8GHz
Operating Current
20mA
Transmit Power
1mW
Compliance
California Energy Commission (CEC) Status
Lawful for Sales in California
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
