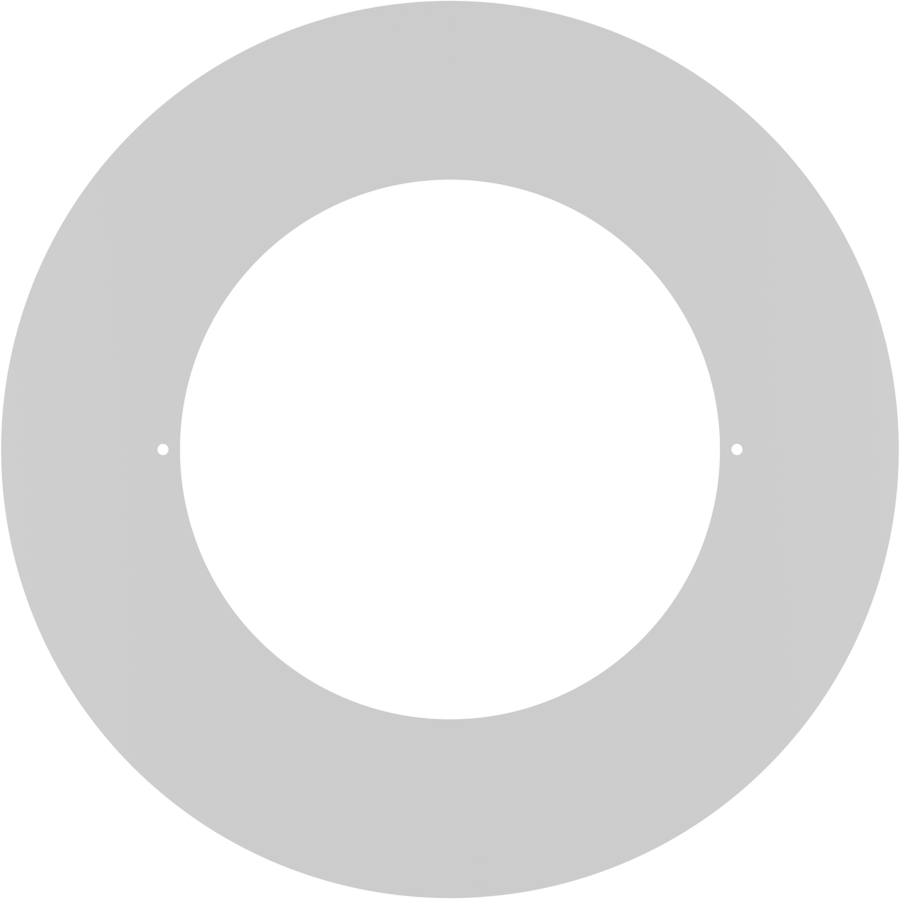

DL8-10GOOF/R/M
DL8-10GOOF/R/M large main


View Technical Specs
View Price & Availability
Dimensions

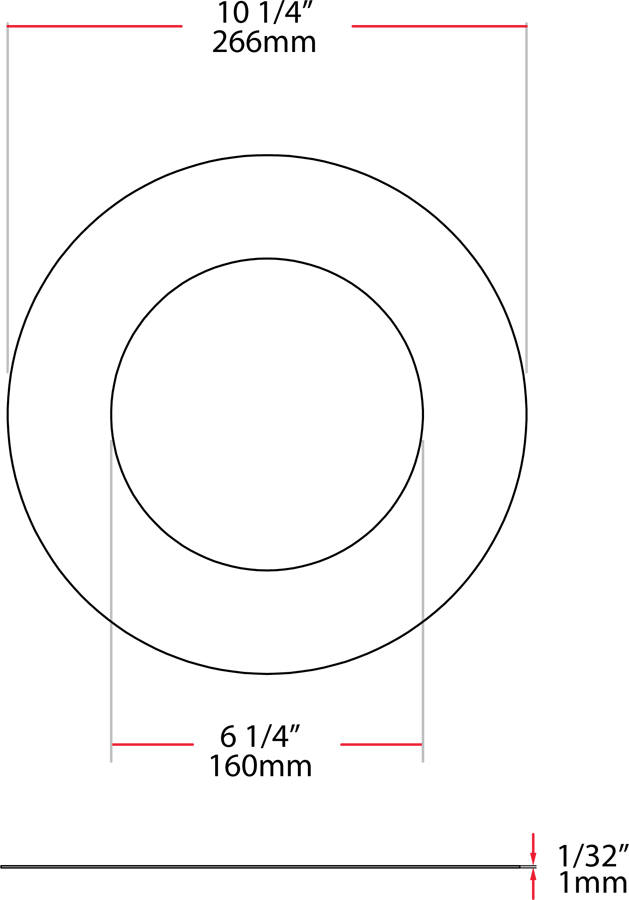

Link to Dimension Drawing

Weight: 0.7 lbs

Technical Specifications
Construction
Material
Constructed from high quality steel
Finish
White powder coated finish to match compatible downlights
Inner Diameter
6 1/4"
Outer Diameter
10 1/4"
Maximum Ceiling Hole Cut Out
8 15/16"
Other
Compatible Downlight
6" CRLED Field Adjustable
Compatible Catalog Number
C6R7/10/189FAUNVW
