DSKFA-6R159CCT120WS/PIR
DSKFA-6R159CCT120WS/PIR

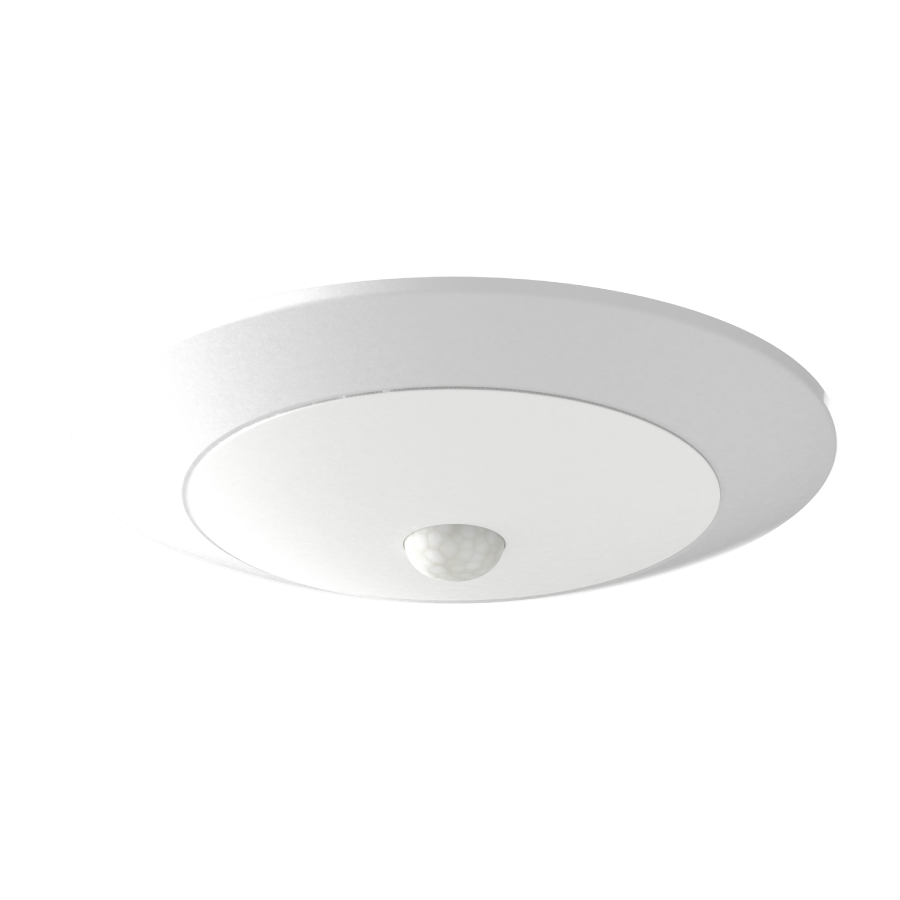

- Low profile back-lit design made of durable thermoplastic housing with frosted lens
- New construction or retrofit applications
- Installs on standard junction boxes
- Suitable for indoor/outdoor use in dry, damp, and wet locations
- Suitable for use in closets when installed in accordance with NEC guidelines
- Integrated passive infrared (PIR) sensor with a 30s timeout
Performance
| Watts | 15W |
| Color Temp | |
| Lumens | 1,300 lm |
| Efficacy | 86.7 |
| Color Accuracy | 3000/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current |
| 120V | 0.14A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 15W |
Dimensions
Weight: 0.6 lbs
Technical Specifications
Performance
Description
3CCT Selectable Low-profile, surface-mount Disk for new construction and retrofit applications. Integrated passive infrared (PIR) sensor with a 30s timeout make this ideal for use in a variety of applications including hallways, bathrooms, stairways, closets, and canopies. Mounting kit for recessed housing sold separately.
Product Type
Surface & Flush Mounts
Input Wattage
15W
Lumens
900lm
Efficacy
60lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimming Driver
TRIAC compatible dimmer
THD
≤20%
Power Factor
≥0.9
Flicker
≤30%
Input Voltage
120V
Operating Frequency
60Hz
Construction
Material
Metal
Trim Style
Smooth Trim
Shape
Round
Operating Temperature
-4°F(-20°C) to 104°F (40°C )
Size
6"
Installation
Mounting
Surface and recessed mount
LED Characteristics
R9 Value
High color performance with R9 greater than or equal to 50
Compliance
UL Classified
Yes
UL Listed
Yes
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Energy Star ID
3555647
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
