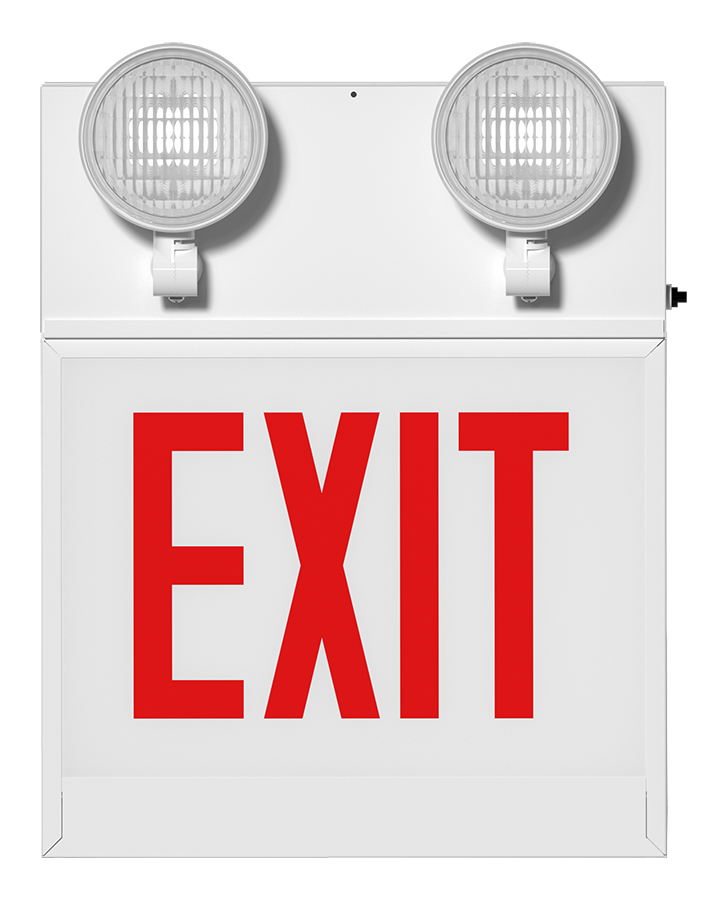

ECOMBO-RCH

Exit & Emergency (Indoor)

Universal faces with red letters

Durable sheet metal housing

90 minutes of battery backup

View Technical Specs

View Price & Availability

Dimensions

Weight: 8.1 lbs

Technical Specifications

Performance

Product Type

Exit Combo Chicago Approved

Description

Chicago-approved exit sign combo with 90-minute emergency battery backup unit.

Input Power (W)

12W @120V; 13W @277V

Lumens

349lm

Lumens (per fixture)

698lm

Electrical

Power Factor

0.9

Input Voltage

Dual 120/277 Voltage

Operating Frequency

60Hz

Input Current @ 120V (mA)

120mA

Input Current @ 277V (mA)

60mA

Maximum Output Current (Amps)

1.67A

Maximum Output Wattage

10W

Dual Voltage Circuit Operation

Operating Temperature

68°F to 122°F (20°C to 50°C)

Emergency Illumination

120 minutes

Battery Type

Nickel Cadmium

Battery Voltage

Recharge Time Required

24-hours

Battery Operating Temperature

20°F to 50°F (68°C to 122°C)

Storage Temperature

68°F to 86°F (20°C to 30°C)

Storage Shelf Life

3 years before the initial charge. 5 years after initial charge.

Self Diagnostics

No, manual test only

Remote Test Switch

Emergency Backup

Battery Backup

Yes

Installation

Mounting Method

Back/Top/End

Mounting Type

Wall/Ceiling Mount

Maximum Mounting Height (ft.)

20.5 ft

Spacing Criteria for Emergency Egress

46 ft on center assuming 7.5 ft mounting height with egress path 3 ft out

Cold Weather Rated

Construction

Shape

Rectangle

Housing Material

Sheet Metal

Housing Color

White

Panel Material

Glass

Panel Color

White

Letter Color

Red

Number of Faces

Universal Single/Double Face

Arrow Direction

No Arrow

Sign Format

Panel

Remote Capacity

Yes

No. of Heads

2-Lamp Heads

Head Shape

Round

Remote Head Power (W)

Remote Head Lumens (lm)

349lm

Remote head Lumens (per fixture)

698lm

Remote Heads Replaceable

Yes

Remote Power (W) Capacity

10W

Compliance

Listings

UL924 Listed

Environment

Suitable for indoor use in dry and damp environments

IP Rating

Indoor

Certification Model Number

CALEDCXTEU2RWRC-NA

T20 Compliant

Not compliant

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

City Compliance

Chicago Approved

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

EREMOTE-1
Single remote head
EREMOTE-1H
Single remote head high-output
EREMOTE
Double remote head
EREMOTE-H
Double remote head high-output
EREMOTE-1HB
Single remote head high-output, black
EREMOTE-B
Single remote head, black
EREMOTEOUT-1
Single remote head, outdoor
EREMOTEOUT
Double remote head, outdoor
EREMOTEOUT-1H
Single remote head high-output, outdoor
EREMOTEOUT-H
Double remote head high-output, outdoor
EREMOTEOUT-1HB
Single remote head high-output, black, outdoor
EREMOTEOUT-HB
Double remote head high-output, outdoor
