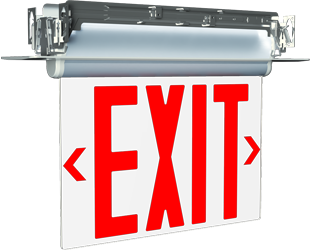

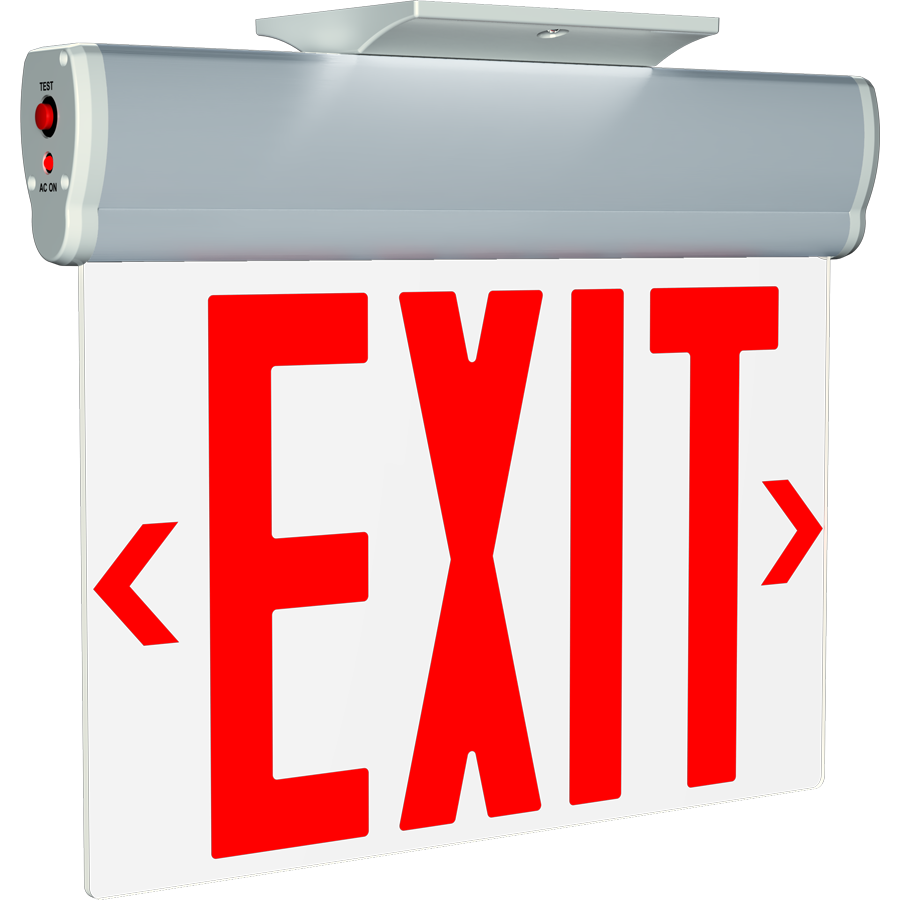

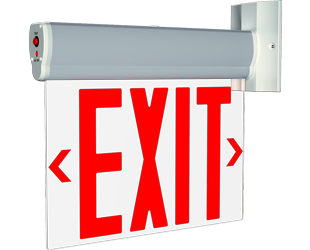

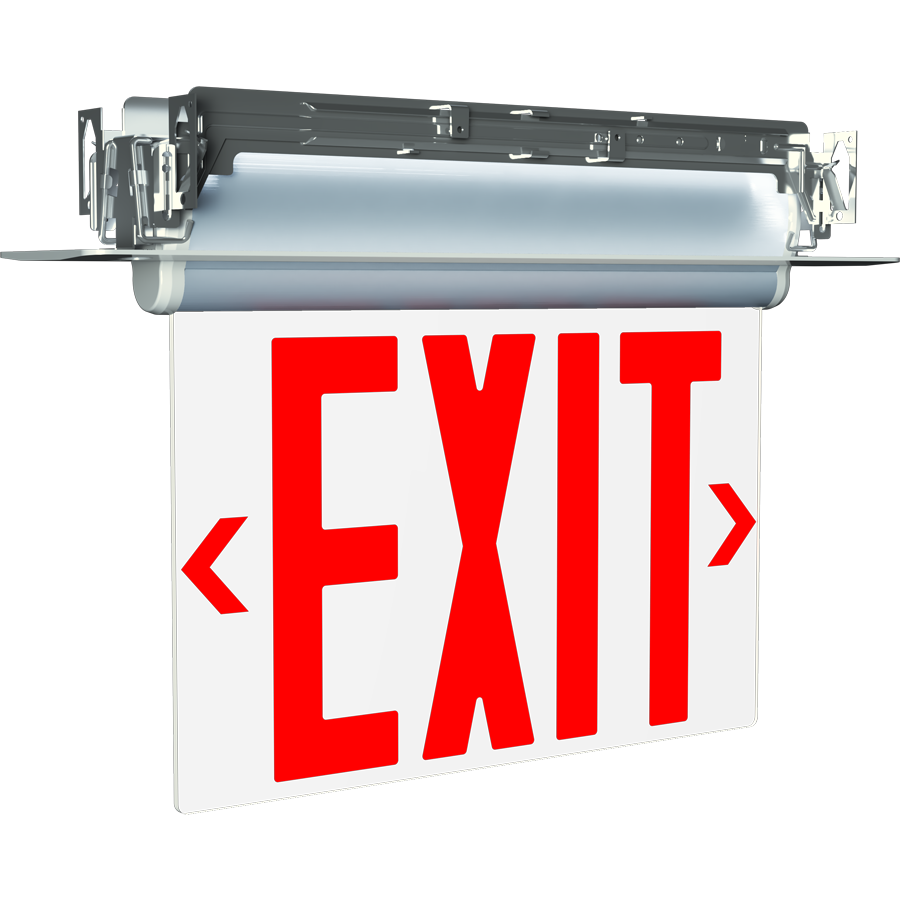

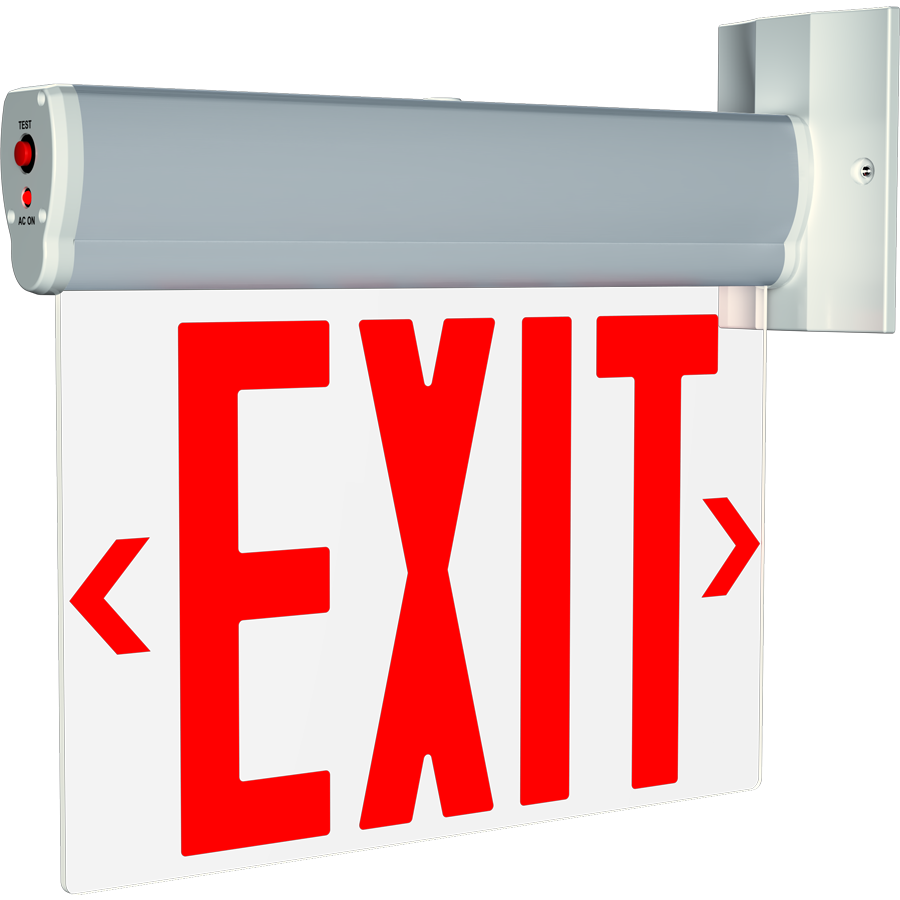

ELXNYC
- Great for applications requiring an attractive, edge-lit exit sign while remaining budget- friendly
- Provides ceiling, wall, recessed, and end mounting capability all in one box
- NYC-Compliant aluminum housing
- Nickel Metal Hydride battery delivers 90 minutes of emergency capacity. Test switch provides manual activation of 30-second diagnostic testing for on-demand visual inspection.
- Red letters. Single-face clear panel or double-face mirror panel models available. Includes removeable chevron arrows.

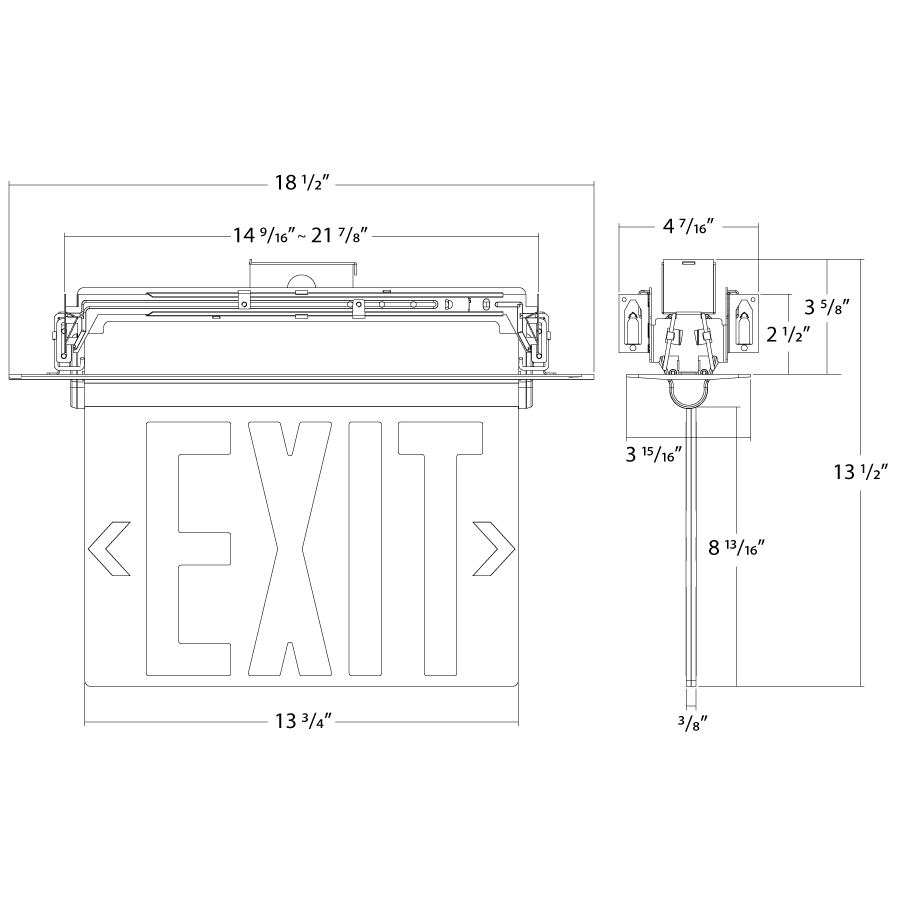

Dimensions
Weight: 6.2 lbs
Technical Specifications
Performance
Product Type
Edge-lit Exit Sign
Description
These edge-lit exit signs provide a high-end aesthetic while still being economical. The exit sign panel tilts 0-180° degrees, fitting many moutnting orientations, and comes with surface and recessed mounting hardware in the box.
Input Wattage
1.7W
Electrical
Power Factor
0.4
Input Voltage
120-277V, No dual circuit operation/No special voltage
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
29mA
Input Current @ 277V (mA)
29mA
Maximum Output Current (Amps)
200mA
Maximum Output Wattage
0.5W
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Lumens
RED: 30.4W
Emergency Backup
Battery Backup
Yes
Battery Type
Nickel-Metal Hydride
Battery Voltage
3.6V
Battery Operating Temperature
32°F to 104°F (0°C to 40°C)
Battery Recharge Time
24 hours
Emergency Operation
90 minutes
Self Diagnostics
No
Remote Test Switch
No
Installation
Mounting Method
Recessed
Mounting Type
Ceiling
Construction
Cold Weather Rated
No
Housing Material
Thermoplastic
Housing Color
Silver
Housing Flamability
5VA
Panel Material
Acrylic
Panel Color
Clear
Letter Color
Red
Number of Faces
Single Face
Arrow Direction
Left, Right (adhesive stickers included)
Sign Format
Stencil
Remote Capacity
No
No. of Heads
None
Head Shape
None
Remote Heads Replaceable
No
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
IP Rating
IP20
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
City Compliance
New York City Approved
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
