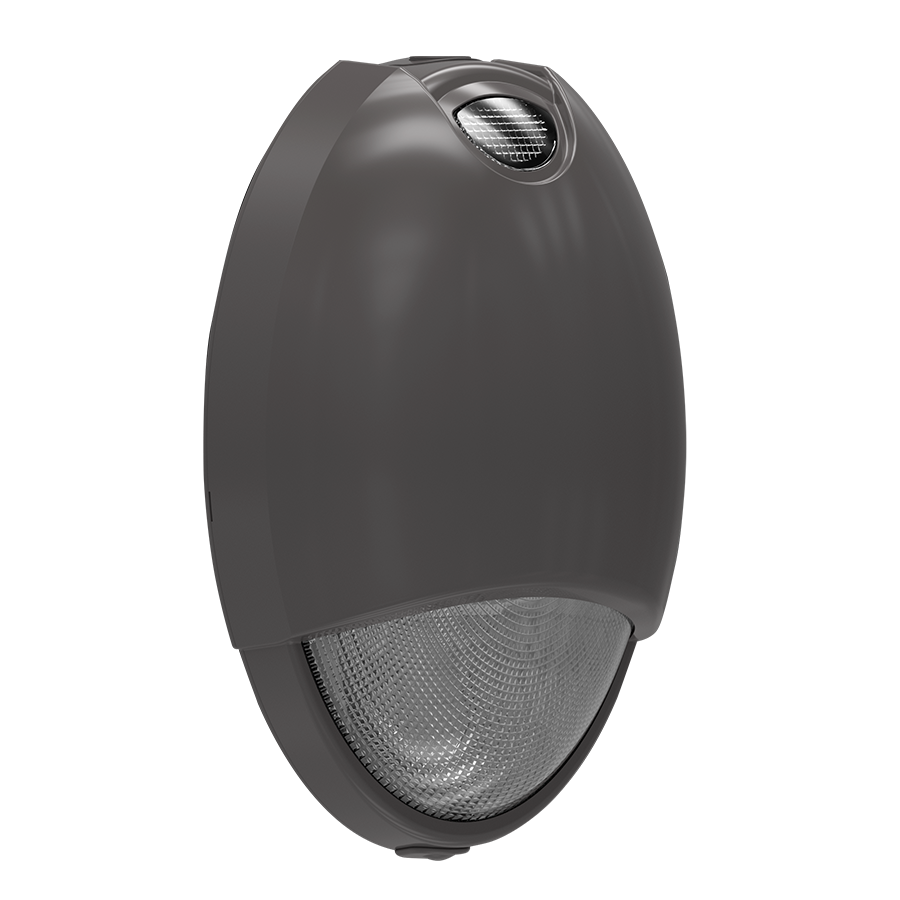

EMOUT-S/PC
- Durable aluminum design
- Remote head, see Remote Head Compatibility List
- Integrated photocell
- Self-diagnostic
- Outdoor rated for dry, damp, and wet environments
Dimensions
Weight: 3.8 lbs
Technical Specifications
Performance
Product Type
Emergency Unit
Description
Decorative Outdoor Die-Cast AC/Emergency Unit
Input Power (W)
2.5W
Lumens
1,286lm AC; 350lm DC
Electrical
Power Factor
0.3
Input Voltage
Dual 120/277 Voltage
Frequencies
50/60 Hz
Input Current @ 120V (mA)
21mA
Input Current @ 277V (mA)
9mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Emergency Illumination
90 minutes
Battery Type
Nickel Cadmium
Battery Voltage
4.8V
Recharge Time Required
24-hours
Battery Operating Temperature
0°F to 50°F (32°C to 122°C)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
Yes
Remote Test Switch
No
Installation
Mounting Method
Back
Mounting Type
Wall
Maximum Mounting Height (ft.)
10 ft
Emergency Egress Coverage(ft) Mounting at height of 7.5ft
29 ft x 3 ft mounted @ 7.5 ft
Spacing Criteria for Emergency Egress
45 ft on center assuming 7.5 ft mounting height with egress path 3 ft out
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Die Cast Aluminum
Housing Color
Bronze
Remote Capacity
No
Compliance
Listings
UL924 Listed
Environment
Suitable for indoor or outdoor use in dry, damp, and wet environments
IP Rating
Indoor/Outdoor
Certification Model Number
DBEL-ACEM-HL-BR-SDT-PC
T20 Compliant
Not Title 20 Compliant
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
Battery is prorated.
Recently Viewed Products
HALV10L927-FG1-A/LC/E2
Architectural 710 Lumens Halv Forward Light 14W 90Cri 2700K Frosted Lens With Grill Style 1 Antique Bronze Finish Lightcloud Controller Battery Backup
HALVS18L930-CW-W/BL/E2
Architectural 680 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3000K Crushed Polar White White Finish Bi-Level Control Battery Backup
HALVS10L940-MP-SA/LC/E2
Architectural 173 Lumens Halvs Forward & Up/Down Light 14W 90Cri 4000K Metallic Platinum Lens Satin Nickel Finish Lightcloud Controller Battery Backup

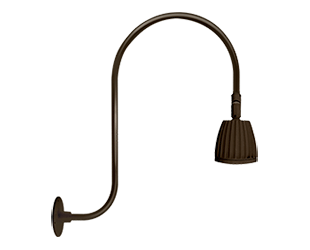

GN3LED26NBWN
