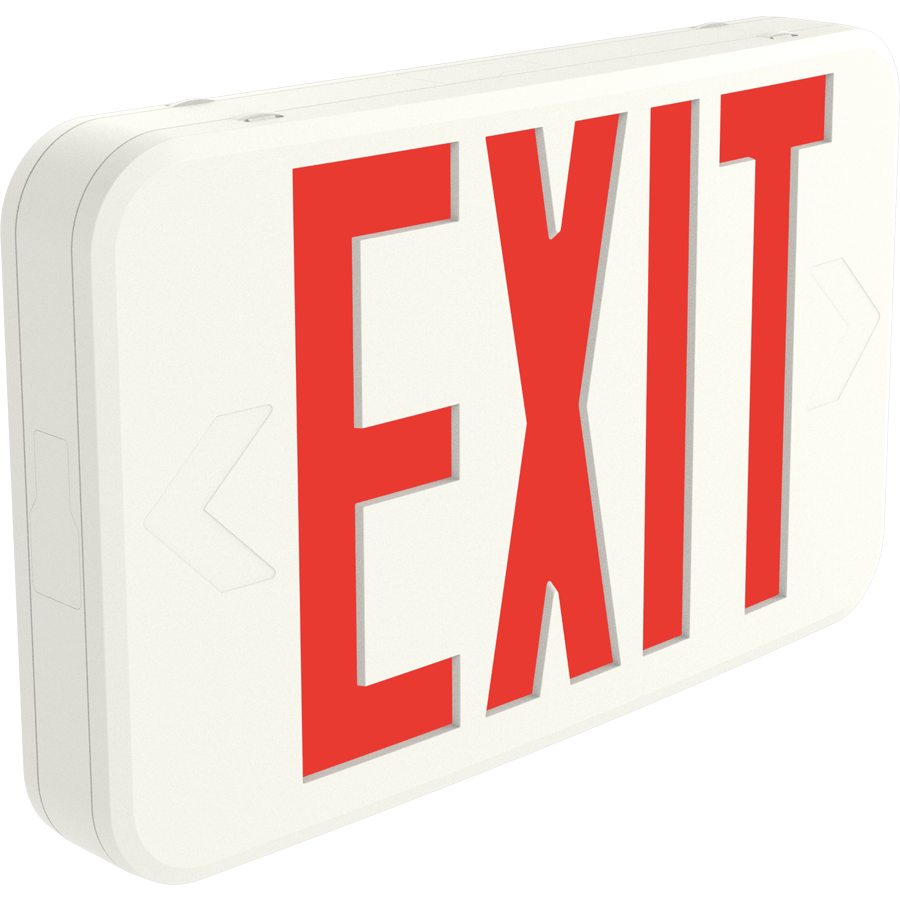

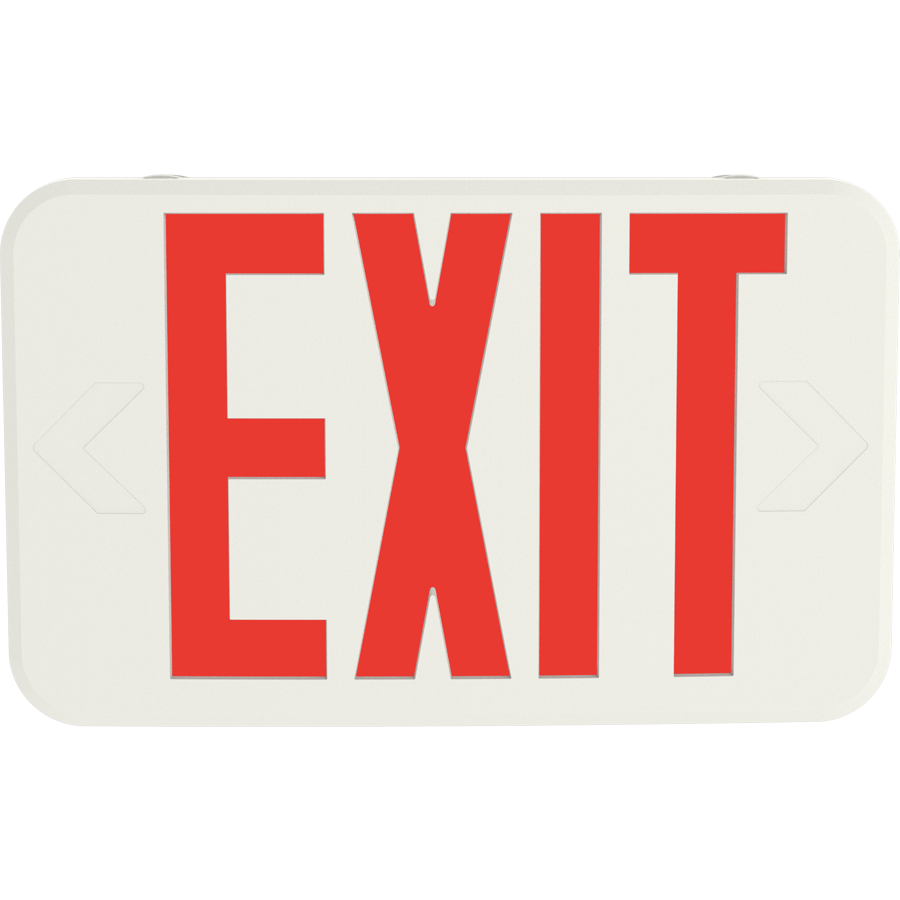

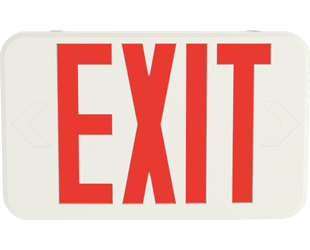

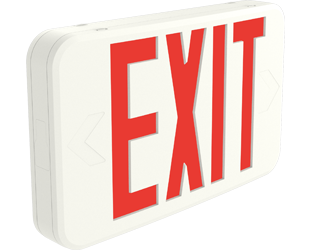

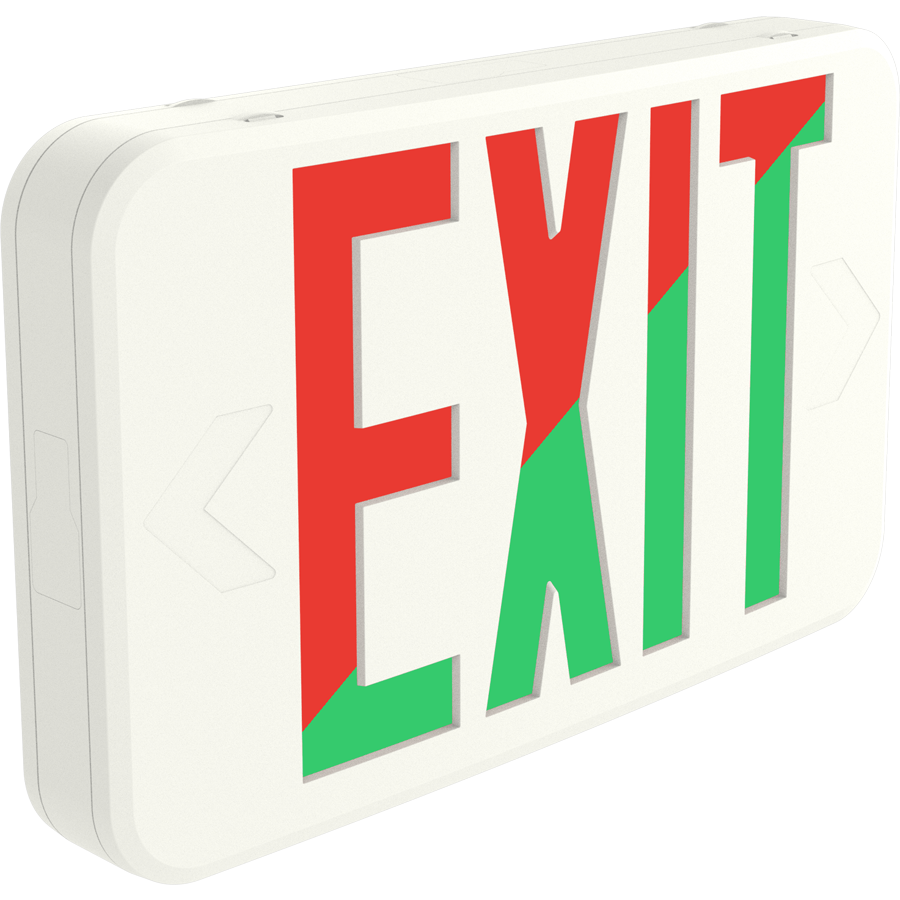

EXIT34-RG
- Universal faces with color letters
- Durable thermoplastic design
- Complies with California Title 20 requirements
Dimensions
Weight: 1.4 lbs
Technical Specifications
Performance
Product Type
Exit Sign
Description
Ultra-economy exit sign with universal faces and options for red or green letters.
Input Power (W)
1.0W
Electrical
Power Factor
0.4
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
20mA
Input Current @ 277V (mA)
10mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 104°F (0°C to 40°C)
Battery Backup
No
Self Diagnostics
No, manual test only
Installation
Mounting Method
Back/Top/Side
Mounting Type
Wall/Ceiling Mount
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Thermoplastic
Housing Color
White
Panel Material
Thermoplastic
Panel Color
White
Letter Color
Red/Green
Number of Faces
Universal Single/Double Face
Arrow Direction
Left/Right Arrow
Sign Format
Stencil
Remote Capacity
No
Remote Heads Replaceable
No
Compliance
Listings
UL924 Listed
Environment
Suitable for use in dry and damp environments
IP Rating
IP20
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
