EXITEDGE-GWP/E
EXITEDGE-GWP/E
- Double-face panel with color letters
- Modern edge-lit design
- Compliant with California Title 20
Dimensions
Weight: 3.2 lbs
Technical Specifications
Performance
Product Type
Edge-lit Exit Sign
Description
Edge-lit exit sign with a double face, green letters, and 90 minutes of emergency battery backup.
Input Wattage
4W @120V and 277V
Electrical
Power Factor
≥0.9
Input Voltage
Dual 120/277 Voltage
Operating Frequency (Hz)
60Hz
Input Current @ 120V (mA)
31mA
Input Current @ 277V (mA)
20mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Emergency Illumination
90 minutes
Battery Type
Nickel Cadmium
Battery Voltage
4.8V
Recharge Time Required
24-hours
Battery Operating Temperature
0°F to 50°F (32°C to 122°C)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
No, manual test only
Remote Test Switch
No
Emergency Backup
Battery Backup
Yes
Installation
Mounting Method
Back/Top/End
Mounting Type
Wall/Ceiling Mount
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Aluminum
Panel Material
Acrylic
Panel Color
White
Letter Color
Green
Housing Color
Aluminum
Number of Faces
Double Face
Arrow Direction
No Arrow
Arrow Material
Adhesive (included)
Sign Format
Edge-lit
Remote Capacity
No
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
ELXTEU2GWAEM
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Battery is prorated.
Battery is prorated.
Recently Viewed Products
IVAT2-75LWM740ZH/7PR
Area Lights 8140 Lumens Ivat2 Type Ii 67W Wall Mount 70Cri 4000K Bronze 347-480V 0-10V Dimming 7-Pin Receptacle
ALED3T125SF/D10/WS2
Arealights 14891 Lumens Aled Type Iii Slipfitter 5K 125W 120V-277V 0-10V Dimming Multi-Level Sensor With 20 Feet Lens Bronze
RDDLED2S-10D-30YY-S-SAT
Recessed Downlights 932 Lumens Rddled 2 Inches Square 10W Dimmable 30 Degree 2700K 80Cri Specular Trim Cone Satin Nickel Trim Ring 1/2 Inch Trim

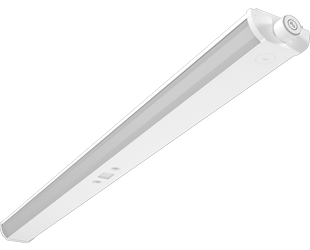

TSLED4/LCBS/US
