FFLED120TNW/D10 has been discontinued. You have been redirected to its new replacement, FFLEDLTW
Return to FFLED120TNW/D10

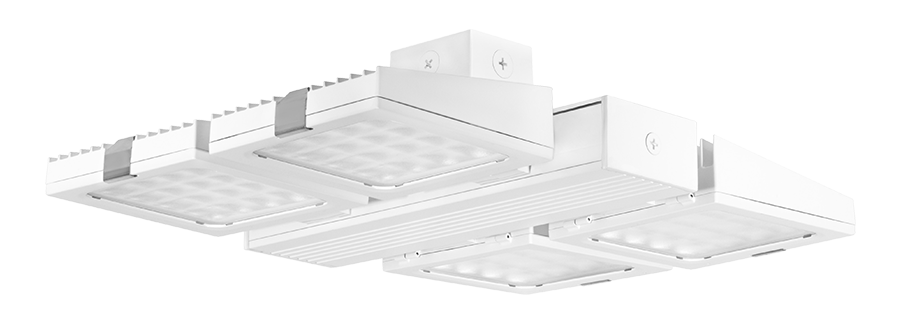

FALCOR230NW/D10
FALCOR230NW/D10
- High-output, high performance industrial high bay
- High ambient temperature rating of 55°C
- Diffusion lens reduces glare
- Multiple mounting options: pendant, surface or chain
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 230W |
| Color Temp | 4000K (Neutral) |
| Lumens | 20,777 lm |
| Efficacy | 86.1 lm/W |
| Color Accuracy | 74 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.99A |
| 208V | 1.21A |
| 240V | 1.05A |
| 277V | 0.88A |
| Input Watts | 241.2W |
Dimensions
Weight: 41.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Optical
Optics
120° downlight
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Suitable for use in up to 131°F (55°C)
Electrical
Drivers
Constant Current, Class 2, 100-277V, 50/60 Hz, 120V: 1.99A, 208V: 1.2A, 240V: 1.04A, 277V: 0.88A, 4kV surge protection
THD
3.9% at 120V, 8.8% at 277V
Power Factor
99.5% at 120V, 95.3% at 277V
