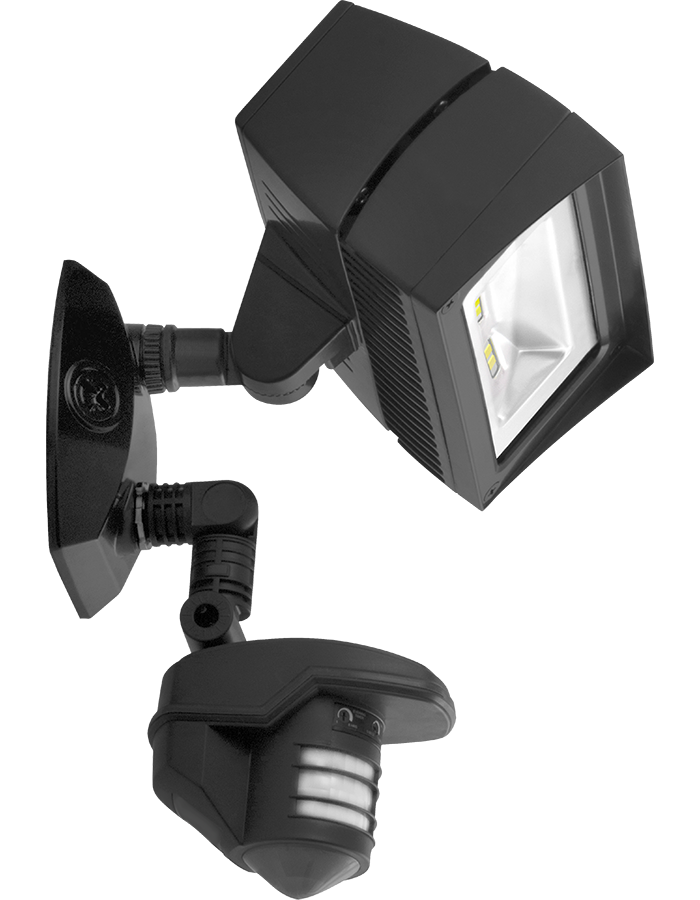

FFLED18N/STL3
FFLED18N/STL3
- Ultra-efficient LED and optical design
- Replaces 70W MH floodlights
- 100,000-hour life based on LM-80 results and TM-21 calculations
- NEMA type - 7H x 6V
- "Air-Flow" technology heatsink
- 5-Year, No-Compromise Warranty
Performance
| Watts | 18W |
| Color Temp | 4000K (Neutral) |
| Lumens | 2,416 lm |
| Efficacy | 123.3 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.2A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 19.6W |

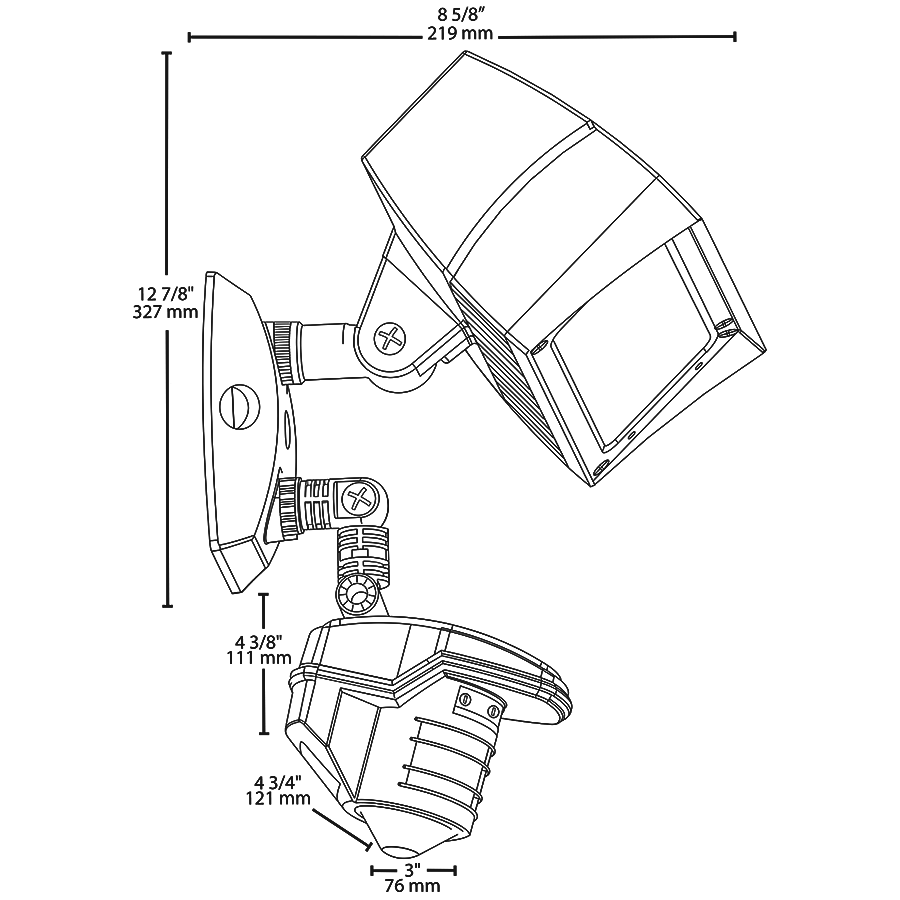

Dimensions
Weight: 3.9 lbs
Technical Specifications
Electrical
Driver
Constant Current, Class 2, 120V, 50 - 60 Hz, 120VAC 0.2 Amps.
THD
12.64% at 120V, 16.41% at 277V
Power Factor
98.7% at 120V, 91.6% at 277V
Surge Protection
6 kV
Wall Switch Manual Override
Two flip logic prevents activation by momentary power outages. Override resets to auto at dawn. No extra wiring needed.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Compliance
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
UL Listed
Suitable for wet locations. Suitable for ground mounting.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Optical
NEMA Type
NEMA Beam Spread 7H x 6V
Construction
Airflow
Airflow technology heat sink for superior cooling
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Thermal Management Housing
Die-cast aluminum housing, lens frame and mounting arm
Reflector
Semi-specular anodized aluminum
Gaskets
High-temperature silicone gaskets
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Temperature Compensation
Sensitivity adjusted automatically for consistent detection in hot and cold ambient temperatures
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Scanning LEDs
3 LEDs continually scan back-and-forth
Color Matched Lens
Dark lens with bronze units, white lens with white units
Installation
Mounting
Heavy-duty mounting arm with "O" ring seal & stainless steel screw
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
Sensor Settings
Time Adjustment
5 seconds to 12 minutes
Wide Sensitivity Control
Adjustable from 100% to 30%
Evening Timer
Keeps lights on for 1-8 hours after dusk. Then sensor is motion activated until dawn.
Set it and forget it
STL360's full coverage pattern reduces need for aiming and adjustment
Advanced Detection Logic
Minimizes false triggers
Sensor Lens Masks
Customized press apply lens mask included to reduce coverage easily
Sensor RF Immunity
Circuits fully shielded for maximum radio frequency immunity
Photoelectric Control
Deactivates lights during daylight.
Sensor Detection
Senses 180° out and 360° down for Total Detection
Sensor Switching Capacity
8 Amps, 750W LED @120 Volts 0.8pF Driver; 8 Amps, 500W LED @120 Volts 0.5pF Driver
.
