FFLED18NW/EC

Ultra-efficient LED and optical design

Replaces 70W MH floodlights

100,000-hour life based on LM-80 results and TM-21 calculations

NEMA type - 7H x 6V

"Air-Flow" technology heatsink

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	18W
Color Temp	4000K (Neutral)
Lumens	2,416 lm
Efficacy	123.3 lm/W
Color Accuracy	82 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.2A
208V	0.15A
240V	0.13A
277V	0.11A
Input Watts	19.6W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.9 lbs

Technical Specifications

Construction

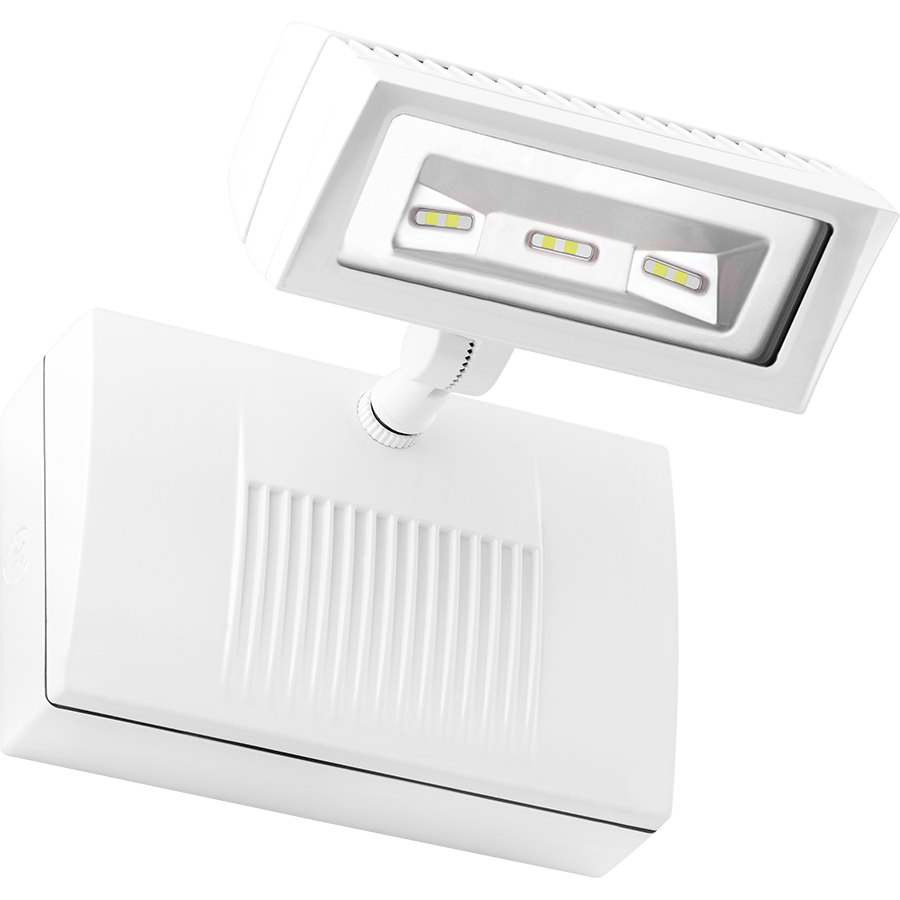

Cold Start FFLED18 with Battery Backup

Minimum starting temperature is -4°F/-20°C

Thermal Management

Optimized using computational fluid dynamics so ftware to ensure long LED and driver lifespan

Gaskets

High-temperature silicone

Housing

Precision die-cast aluminum housing, lens frame and mounting arm

Airflow

Airflow technology heat sink for superior cooling

Thermal Management Housing

Die-cast aluminum housing, lens frame and mounting arm

Reflector

Semi-specular anodized aluminum

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Compliance

UL Listed

Suitable for Wet Locations. Wall Mount Only. Battery Backup UL 924 Listed Emergency Lighting Power Supply.

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-GY2VNL

Electrical

Driver

Constant Current, Class 2, 120-277V, 50 - 60 Hz, 120V: 0.2A, 208V: 0.15A, 240V: 0.13A, 277V: 0.11A

THD

12.64% at 120V, 16.41% at 277V

Power Factor

98.7% at 120V, 91.6% at 277V

Surge Protection

6 kV

Battery Backup

Two field-replaceable, high-temperature, maintenance-free, nickel-cadmium batteries

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

LED Characteristics

LEDs

Multi-chip, high-output, long-life LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Optical

NEMA Type

NEMA Beam Spread 7H x 6V

Installation

Mounting

Heavy-duty mounting arm with "O" ring seal & stainless steel screw

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Patents

The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
