FFLED80TNB55/PCU

Spec Sheet IES File Instructions Spec Sheet EZ Layout

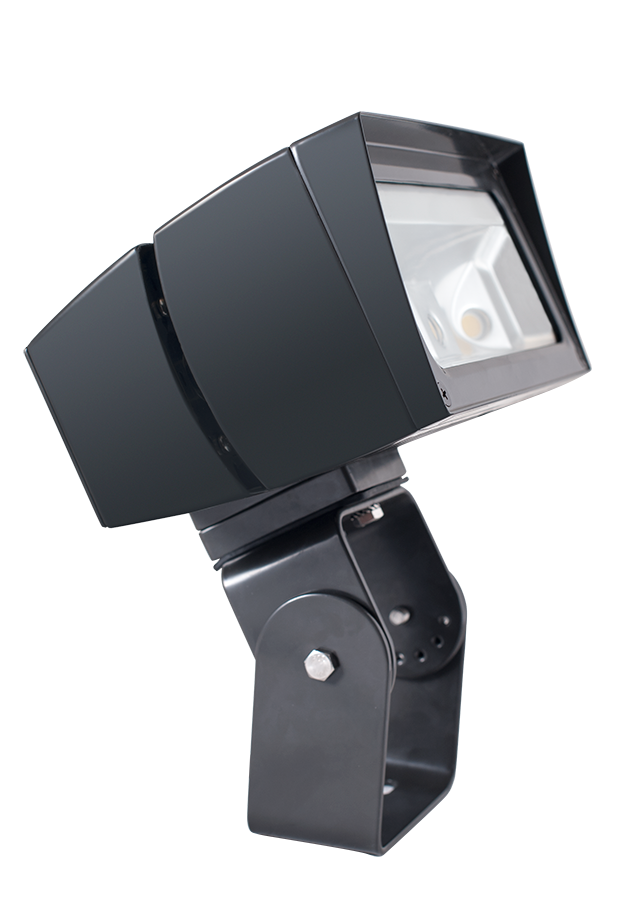

FFLED80TNB55/PCU

Ultra-efficient LED and optical design

Replaces 250W MH floodlights

100,000-hour life based on LM-80 results and TM-21 calculations

"Air-Flow" technology heatsink

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	80W
Color Temp
Lumens	9,116 lm
Efficacy	107 lm/W
Color Accuracy
L70 Lifespan

Type	Constant Current
120V	0.74A
208V	0.48A
240V	0.41A
277V	0.36A
Input Watts	85.2W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 14.8 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for ground mounting.

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LEDs

Multi-chip, high-output, long-life LEDs

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 250W Metal Halide

Optical

NEMA Type

NEMA Beam Spread 5H x 5V

Construction

Ambient Temperature

Suitable for use in up to 104°F (40°C)

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Thermal Management Housing

Superior heat sinking with external Air-Flow fins

Housing

Die-cast aluminum housing, lens frame and mounting arm

Threaded Size

1/2" threaded arm

Effective Projected Area

EPA = 0.65

Reflector

Specular polycarbonate

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Driver

Constant Current, Class 2, 100-277V, 50/60 Hz, 6 kV surge protection, 120V: 074 A, 208V: 048 A, 240V: 041 A, 277V: 036 A

THD

7.13% at 120V, 6.44% at 277V

Power Factor

99.7% at 120V, 94.5% at 277V

Photocell

120V Button photocell included. Photocell is only compatible with 120V.

Installation

Mounting

Heavy-duty Trunnion mount with stainless steel hardware

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Patents

The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
