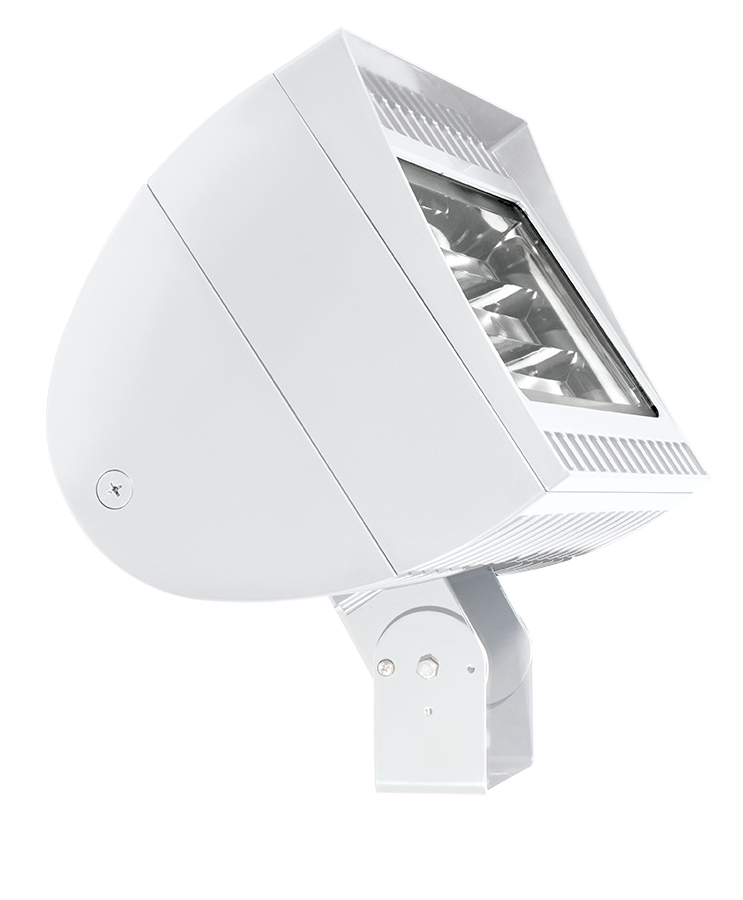

FXLED500TYB46W/D10/BL

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

500W replaces 1500W MH floodlights

100,000-hour LED lifespan

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	500W
Color Temp	3000K (Warm)
Lumens	58,902 lm
Efficacy	113.9 lm/W
Color Accuracy	72 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	4.27A
208V	2.53A
240V	2.20A
277V	1.84A
Input Watts	517W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 71.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP66 for dust and water

Electrical

Drivers

Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 4.27A, 208V: 2.53A, 240V: 2.20A, 277V: 1.84A

THD

6.57% at 120V, 5.8% at 277V

Power Factor

99.7% at 120V, 97.2% at 277V

Surge Protection

4 kV

Optical

NEMA Type

NEMA Beam Spread 4H x 6V

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 1,500W Metal Halide

LED Characteristics

LEDs

Multip-chip, high-output, long-life LEDs

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Vibration Rating

2G vibration rating per ANSI C136.31

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Suitable for use in up to 104°F (40°C)

Effective Projected Area

EPA = 4

Thermal Management

Superior thermal management with external "Air-Flow" fins

Housing

Die-cast aluminum housing with lens frame

Reflector

Specular vacuum-metalized polycarbonate; semi-specular on flat trim edge

Lens

Clear glass lens

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Heavy-duty Trunnion mount with stainless steel hardware

Other

Bi-Level

Allows 25%, 50% or 75% output modes

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
