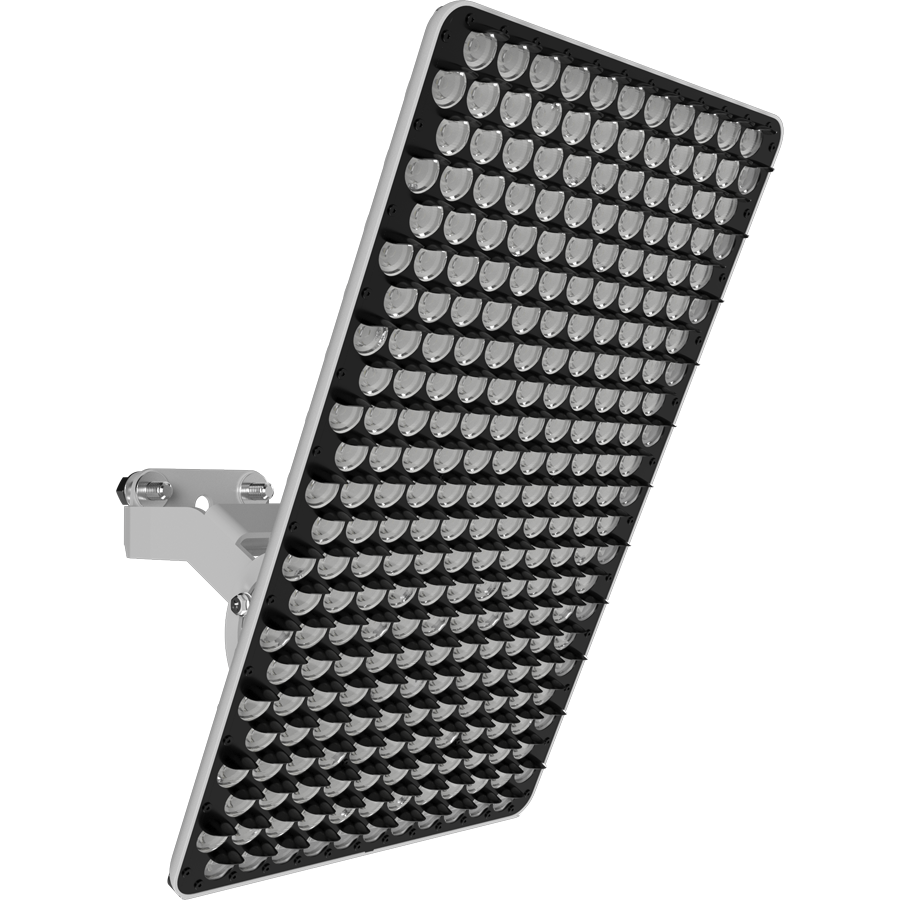

GAME
- 100,000-Hour LED lifespan
- IP65 rating protects against dust and water
- DLC Premium listed
- IK10 Rating
- Industry-leading 3G vibration rating per ANSI C136.31
- 10-Year, Limited warranty
Performance
| Watts | 520W |
| Color Temp | 5000K |
| Lumens | 67,254 lm |
| Efficacy | 129.6 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 4.34A |
| 208V | 2.50A |
| 240V | 2.17A |
| 277V | 1.85A |
| Input Watts | 519.1W |
Dimensions
Weight: 37.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: S-XV0K0S
DLC Product Code: S-XV0K0S
Electrical
Driver
Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 4.34A, 208V: 2.50A, 240V: 2.17A, 277V: 1.85A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
Surge Protection
20 kV
Aux Power Supply
Yes
Dim to Off
Yes
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
IK Rating
IK10 Protected against 20 joules impact. Equivalent to impact of 11 lbs (5kg) mass dropped from 15.8" (400mm) above impacted surface.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Precision die-cast aluminum
Lens
Polycarbonate lens
Vibration Rating
3G vibration rating per ANSI C136.31
Tilt Increment
Continuous tilting with 5° increments
Reflector
Polyethylene Terephthalate (PET)
Effective Projected Area
EPA = 3.2
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Optical
NEMA Type
NEMA Beam Spread 3H x 4V
Installation
Mounting

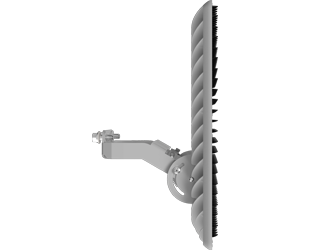

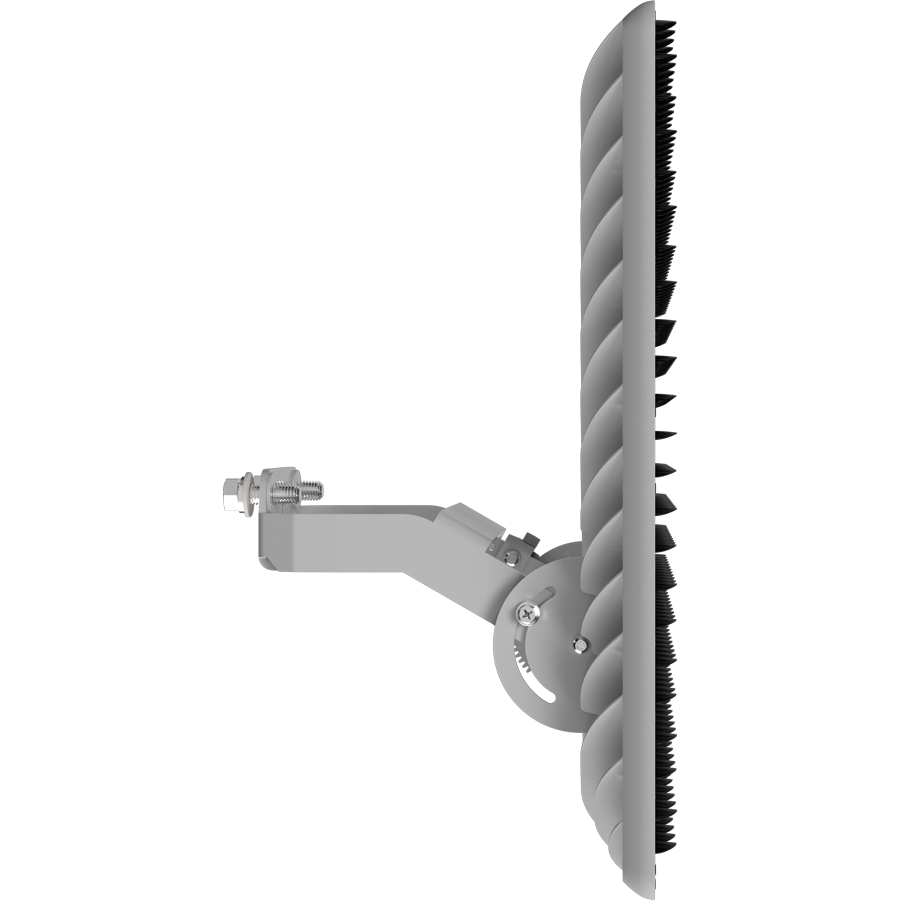

Trunnion mount with stainless steel hardware
Other
10-Year Limited Warranty
The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
