GU10-6.5-930-35D-DIM-G2
GU10-6.5-930-35D-DIM-G2
- Energy efficient replacement for incandescent and halogen Small diameter reflectors
- Constructed from durable materials which lowers risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Single optic and full face lens for precise beam angle control
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
Performance
| Watts | 6W |
| Color Temp | |
| Lumens | 560 lm |
| Efficacy | 86 |
| Color Accuracy | 3000K CRI |
| L70 Lifespan |
| Input Voltage | 120V |
| Power Factor | >0.9 |
| Flicker | ≤30% |
| THDi | N/A |

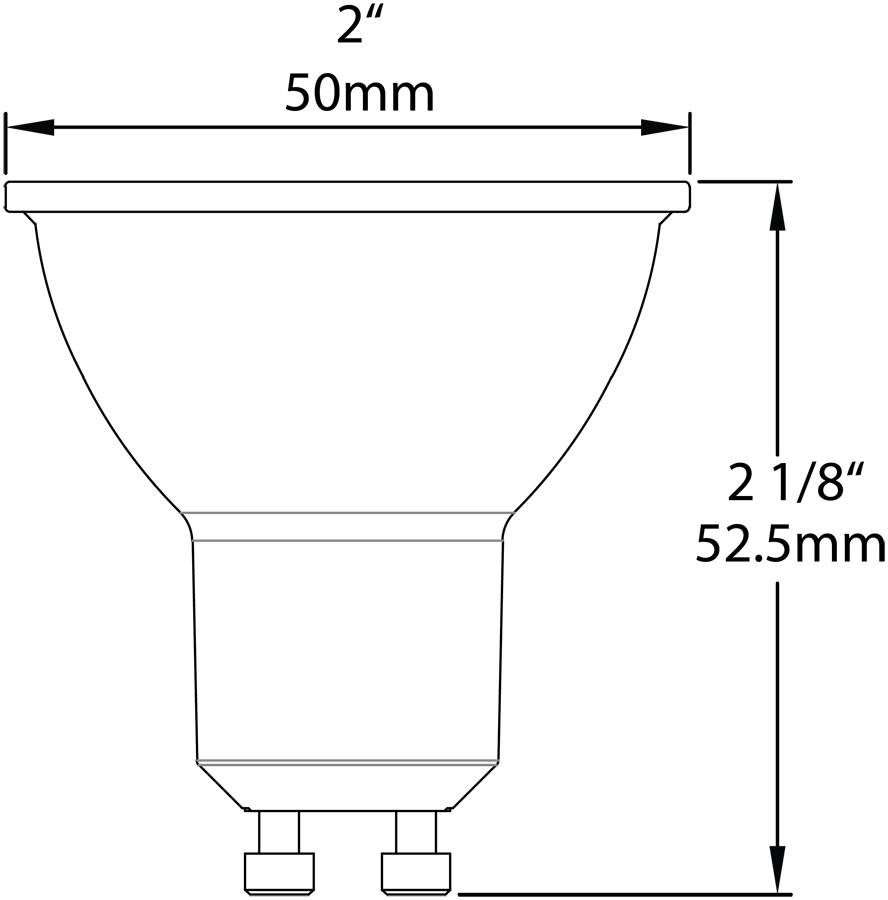

Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
Small Reflectors, 90CRI Dimmable
Wattage Equivalency
60W Incandescent
Input Wattage
6.5W
Lumens (Nominal)
560lm
Efficacy
86lm/W
L70 Lifespan
25,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 60 Hz; 120V: 90mA
THD
<30%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Temperature
-4°F to 113°F(-20 to 45°C)
Flicker
≤30%
LED Characteristics
Beam Angle
35°
Color Temperature
3000K
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 greater than 50
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Base Type
GU10 Bi-pin
Construction
Shape
GU10
Finish
White
Enclosure Material
Polycarbonate
Lens Finish
Clear
Compliance
Listings
UL Listed
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
No
Certification Model Number
GU10-6.5-930-35D-DIM-G2
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
