GUS2-25YNW/D10
GUS2-25YNW/D10

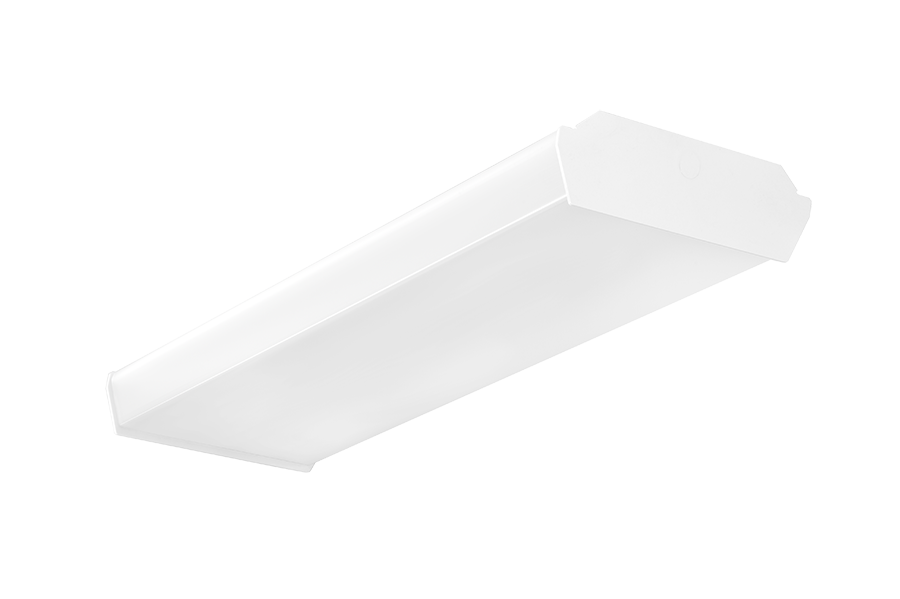

- Energy-efficient, maintenance-free LED wrap fixture
- Multiple mounting options: surface, pendant or chain
- High-reflectance white finish for optimal output
- Diffusion wrap-around lens for smooth light distribution
- 0-10V dimming, standard
- 100,000-Hour LED lifespan
Performance
| Watts | 25W |
| Color Temp | 3500K (Warm Neutral) |
| Lumens | 3,071 lm |
| Efficacy | 132.4 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.20A |
| 208V | 0.12A |
| 240V | 0.11A |
| 277V | 0.09A |
| Input Watts | 23.2W |

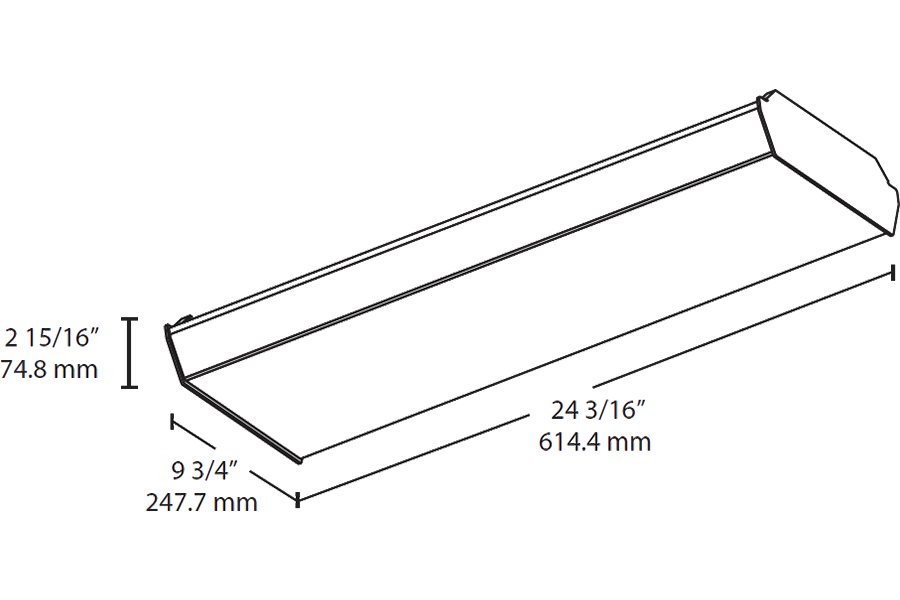

Dimensions
Weight: 8.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: P29DFTWR
DLC Product Code: P29DFTWR
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to (2) F32T8
LED Characteristics
Color Stability
LED Color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Die-formed 22 gauge, cold-rolled, post-painted steel. Post painting improves durability of the finish and eliminates the sharp edges making handling and installation safer.
Lens
Acrylic lens with diffusion for enhanced optical performance
Reflector
Aluminum with high-reflectance (91%) powder coat applied post production for a more durable finish
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount. Can be mounted with chains or v-hooks by others.
Electrical
Driver
Class P, Constant Current, 120-277V, 50-60Hz, 4kV, 120V: 0.20A, 208V: 0.12A, 240V: 0.11A, 277V: 0.09A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
9.45% at 120V, 10.48% at 277V
Power Factor
98.1% at 120V, 92.1% at 277V
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
