HAD4/D10
- 45-degree optical lens provides uniform light distribution
- Dimmable, see Dimmer Compatibility List
- IC and airtight rated
- Separate snap-in color trims available in round, square, smooth and baffle for in-field installation
- 50,000-Hour LED lifespan
- 5-Year, no compromise warranty
Dimensions
Weight: 0.7 lbs
Technical Specifications
Performance
Description

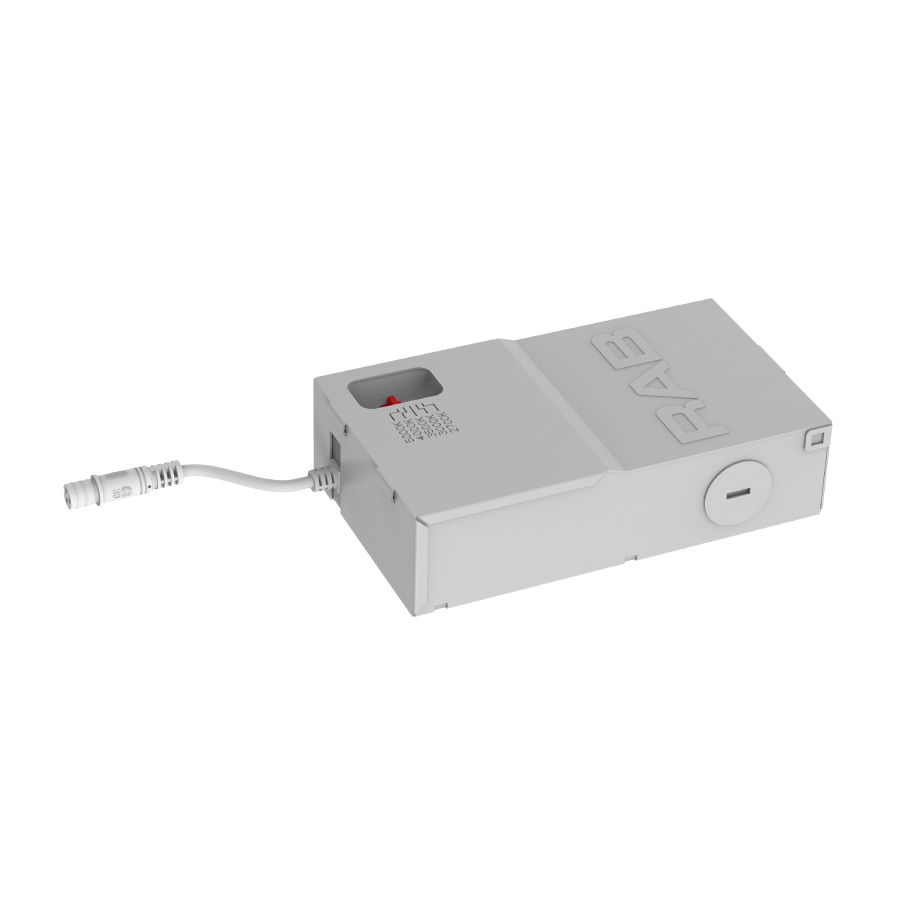

4-inch LED downlight module with universal (120-277V) driver for HALED
Product Type
Recessed Downlights
Input Wattage
12W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Dimming
Yes, See Dimmer Compatibility List
Compliance
UL Listed
Suitable for damp locations
FCC
Complies with Part 15B of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Electrical
THD
≤20%
Power Factor
0.9
Operating Frequency
50/60Hz
Construction
Material
Metal
Trim Style
Smooth Trim
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Installation
Mounting
Recessed ceiling
LED Characteristics
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
