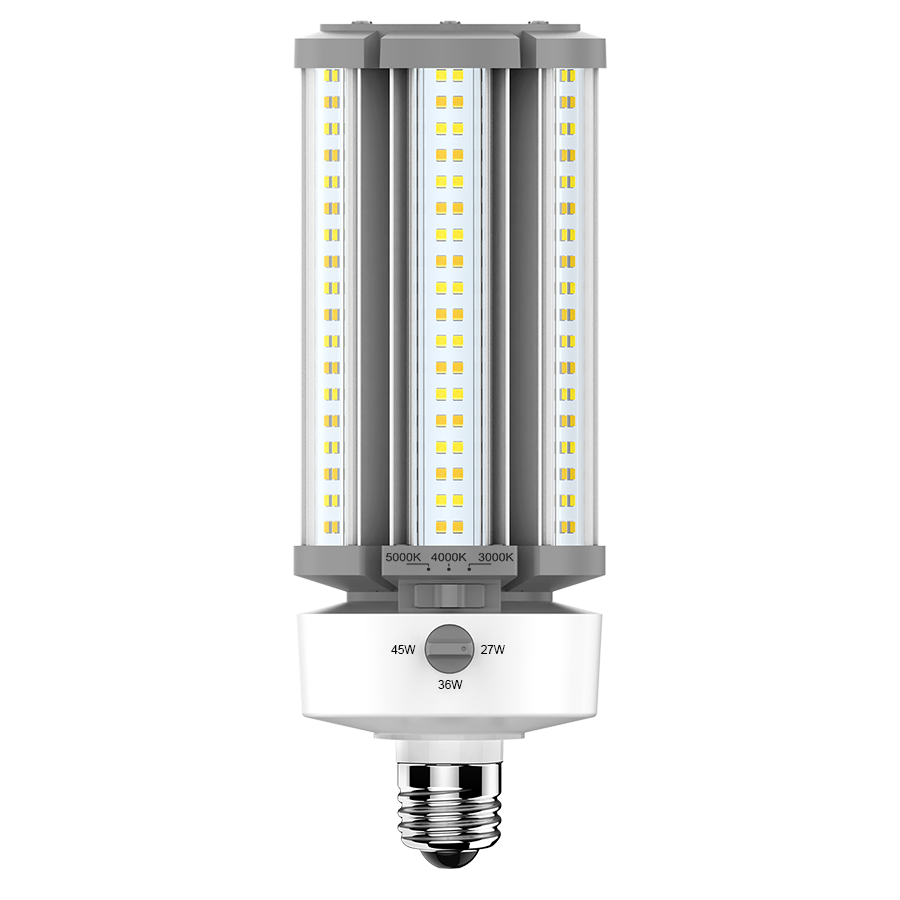

HIDFA-45S-E26-8CCT-BYP/5SP
HIDFA-45S-E26-8CCT-BYP/5SP
- Replaces traditional metal halide or high pressure sodium HID lamp
- Adjustable wattage and CCT allows for in-field customization
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed fixtures in dry or damp locations
Performance
| Watts | 45/36/27W |
| Color Temp | 3000/4000/5000K |
| Lumens | 3,645-6,525 lm |
| Efficacy | 135-145 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.39A |
| 208V | 0.23A |
| 240V | 0.20A |
| 277V | 0.16A |
| Input Watts | 45/36/27W |
Dimensions
Technical Specifications
Performance
Description
Field adjustable lumen output and CCT provide installation flexibility when replacing traditional HID. Integrated AUX port to add lamp-level sensor control.
Wattage Equivalency
125W/150W/175W Metal Halide
Input Wattage
27W/36W/45W
Lumens
27W:
3000K @ 3,645lm; 4000K @ 3,915lm; 5000K @ 3,780lm
36W:
3000K @ 4,860lm; 4000K @ 5,220lm; 5000K @ 5,040lm
45W:
3000K @ 6,075lm; 4000K @ 6,525lm; 5000K @ 6,300lm
3000K @ 3,645lm; 4000K @ 3,915lm; 5000K @ 3,780lm
36W:
3000K @ 4,860lm; 4000K @ 5,220lm; 5000K @ 5,040lm
45W:
3000K @ 6,075lm; 4000K @ 6,525lm; 5000K @ 6,300lm
Efficacy
27W/36W/45W:
3000K @ 135lm/W; 4000K @ 145lm/W; 5000K @ 140lm/W
3000K @ 135lm/W; 4000K @ 145lm/W; 5000K @ 140lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, via the Lightcloud Blue mobile app and devices.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This lamp will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
100-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
387mA
Input Current @ 208V (mA)
230mA
Input Current @ 240V (mA)
203mA
Input Current @ 277V (mA)
162mA
Operating Temperature
-22°F to 140°F (-30°C to 60°C)
Flicker
<30%
Surge Protection
4 kV
LED Characteristics
Color Temperature
Field adjustable via dip switch 3000/4000/5000K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 no less than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Installation Orientation
Vertical and Horizontal
Base Type
E26 Edison
Construction
Finish
Clear
Shape
Post top (sensor)
Endcap Material
Metal
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
IP Rating
IP64
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Other
Compatible Products
Add the Lightcloud Blue 5-Pin Plug-in Controller with optional sensor to connect to the Lightcloud Blue Bluetooth Mesh Wireless Network Lighting Control System. Learn more about Lightcloud Blue.
Accessories
CONTROL/W/AUX/5SP/LCB
Lightcloud Blue 5-Pin Plug-in Controller
CONTROL/W/AUX/5SP/LCBS
Lightcloud Blue 5-Pin Plug-in Controller with PIR Sensor
CONTROL/W/AUX/5SP/LCBS/MVS
Lightcloud Blue 5-Pin Plug-in Controller with MVS Sensor
Lightcloud Blue 5-Pin Plug-in Controller
CONTROL/W/AUX/5SP/LCBS
Lightcloud Blue 5-Pin Plug-in Controller with PIR Sensor
CONTROL/W/AUX/5SP/LCBS/MVS
Lightcloud Blue 5-Pin Plug-in Controller with MVS Sensor
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
