IVAFT-45LSF750GH/WS/LC
Performance
| Watts | 38W |
| Color Temp | 5000K (Cool) |
| Lumens | 5,163 lm |
| Efficacy | 121.8 lm/W |
| Color Accuracy | 76 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 42.4W |
Dimensions
Weight: 13.5 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-SRF1TX
DLC Product Code: S-SRF1TX
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.75% at 480V
Power Factor
95.4% at 480V
Recently Viewed Products
NDLED6RD-50YN-M-S
Recessed Downlights 20 Lumens Ndled6Rd 6 Inch Round Universal Dimming 50 Degree Beam Spread 3500K 80Cri Matte Silver Cone Silver Trim
IVAFT-100LSF730ZU/WS2
Area Lights 9970 Lumens Ivaft Forward Throw 94W Slipfitter Mount 70Cri 3000K Bronze 120V-277V 0-10V Dimming 20 Feet Lens Wattstopper Sensor
ALED2T50YW/480/D10/7PR
Arealights 6717 Lumens Aled Type Ii 8In Pole Arm 3000K 50W 480V 0-10V Dimming 7-Pin Receptacle White

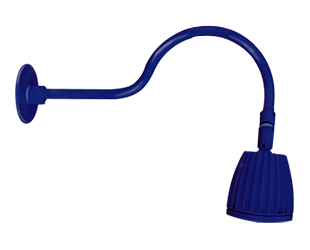

GN1LED13YRBL
