IVAFT-45LWM740WH/WS4
IVAFT-45LWM740WH/WS4 large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 38W
Color Temp 4000K (Neutral)
Lumens 5,123 lm
Efficacy 121.1 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 42.3W
Dimensions
Link to Dimension Drawing

Weight: 19.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-X73LOY
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
13.6% at 480V
Power Factor
95.5% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Recently Viewed Products

This is a link to the product A34T4MSF/MVS A34T4MSF/MVS
A34-M T4 150/125/100W 3000K/4000K/5000K Slipfitter Mount Microwave Occupancy Sensor Bronze
This is a link to the product CDLED6PS-26W-50D927-K CDLED6PS-26W-50D927-K
Cylinders 2127 Lumens Cdled 26W 6 Inches With Pendant Stem 90Cri 2700K Matte Black
This is a link to the product CDLED6PS-26W-50D927-W CDLED6PS-26W-50D927-W
Cylinders 2127 Lumens Cdled 26W 6 Inches With Pendant Stem 90Cri 2700K Matte White

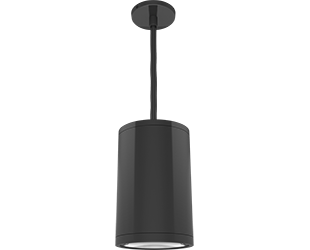

This is a link to the product CDLED6PC-26W-80D950-Z CDLED6PC-26W-80D950-Z
Cylinders 2483 Lumens Cdled 26W 6 Inches With Pendant Cord 48 Inches 90Cri 5000K Bronze

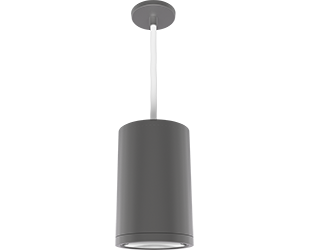

This is a link to the product CDLED6PC-26W-80D950-S CDLED6PC-26W-80D950-S
