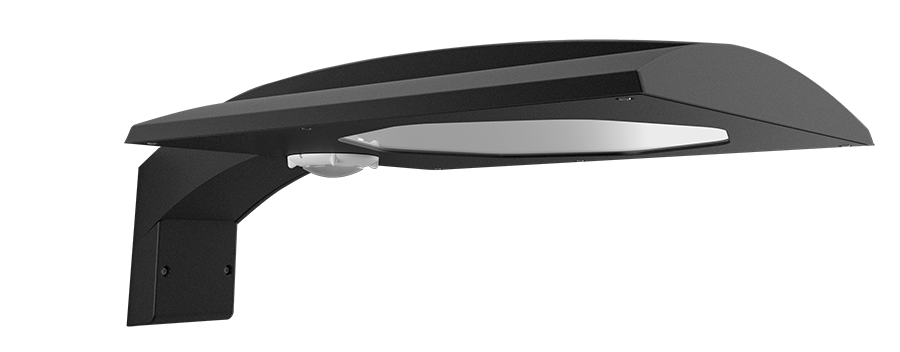

IVAFT-75LPA740ZU/WS
IVAFT-75LPA740ZU/WS large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 67W
Color Temp 4000K (Neutral)
Lumens 7,482 lm
Efficacy 114.9 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.58A
208V 0.34A
240V 0.29A
277V 0.25A
Input Watts 65.1W
Dimensions
Link to Dimension Drawing

Weight: 14.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-GF8J2R
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.4% at 120V, 13.23% at 277V
Power Factor
98.9% at 120V, 93.7% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Recently Viewed Products

This is a link to the product RDLED6R26D-WNHC-B-S RDLED6R26D-WNHC-B-S
Remodeler 6" Round 26W Dim Wallwash 4000K 90 Cri Black Cone Sil Ring

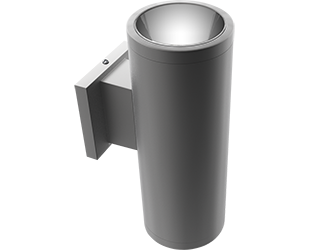

This is a link to the product CDLED4WU-20W-50D935-S CDLED4WU-20W-50D935-S
Cylinders 1741 Lumens Cdled 20W 4 Inches Wall Indirect (Uplight) Only 90Cri 3500K Matte Silver

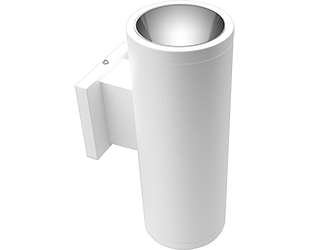

This is a link to the product CDLED4WU-20W-50D935-W CDLED4WU-20W-50D935-W
Cylinders 1741 Lumens Cdled 20W 4 Inches Wall Indirect (Uplight) Only 90Cri 3500K Matte White

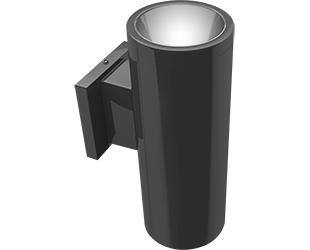

This is a link to the product CDLED4WU-20W-50D930-Z CDLED4WU-20W-50D930-Z
Cylinders 1735 Lumens Cdled 20W 4 Inches Wall Indirect (Uplight) Only 90Cri 3000K Bronze

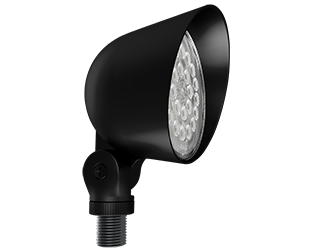

This is a link to the product LF17B LF17B
