IVAT2-75LSF730WH/WS
Performance
| Watts | 67W |
| Color Temp | 3000K (Warm) |
| Lumens | 8,158 lm |
| Efficacy | 111.6 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 73.1W |
Dimensions
Weight: 12.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.78% at 480V
Power Factor
96.2% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Recently Viewed Products
HALV18L940-FG3-CU
Architectural 1333 Lumens Halv Forward Light 25W 90Cri 4000K Frosted Lens With Grill Style 3 Copper Finish
RWLED3T105SFNRG/BL
Roadway Lights 12042 Lumens Type Iii 105W 4000K 120V-277V Slipfitter Mount Bi-Level Roadway Gray
HALV10L940-F-W/E2
Architectural 1053 Lumens Halv Forward Light 14W 90Cri 4000K Frosted Lens White Finish Battery Backup

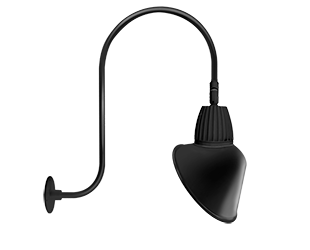

GN3LED26YRACB
