IVAT3-100LPA750ZU/WS
IVAT3-100LPA750ZU/WS large main
  • 0-10V Dimming, standard
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 94W
Color Temp 5000K (Cool)
Lumens 11,359 lm
Efficacy 118.2 lm/W
Color Accuracy 75 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.83A
208V 0.48A
240V 0.42A
277V 0.36A
Input Watts 96.1W
Dimensions
Link to Dimension Drawing

Weight: 14.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-KPFX7I
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.06% at 120V, 7.42% at 277V
Power Factor
99.9% at 120V, 96.8% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Recently Viewed Products

This is a link to the product RDDLED2R-10D-40YHC-B-BT RDDLED2R-10D-40YHC-B-BT
Recessed Downlights 705 Lumens Rddled 2 Inches Round 10W Dimmable 40 Degree 3000K 90Cri Black Trim Cone Black Trim Ring 1/2 Inch Trim
This is a link to the product X17FA80 X17FA80
Floodlights X17 80W Field Adjustable Cct 5000/4000/3000K Knuckle Mount Bronze
This is a link to the product LOT2T110YW/480/D10/HS LOT2T110YW/480/D10/HS
Area Lights 13696 Lumens Lotblaster 110W Type Ii 0-10V Dimming 480V House-Side-Shield White

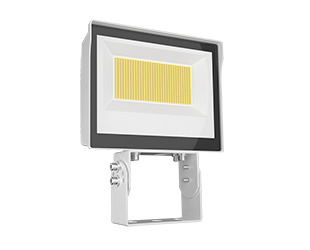

This is a link to the product X17FA140TW/480 X17FA140TW/480
Floodlights X17 140W Field Adjustable Cct 5000/4000/3000K Trunnion Mount White
This is a link to the product HALV10L927-FG1-CU/MVS HALV10L927-FG1-CU/MVS
Architectural 706 Lumens Halv Forward Light 14W 90Cri 2700K Frosted Lens With Grill Style 1 Copper Finish Microwave Sensor

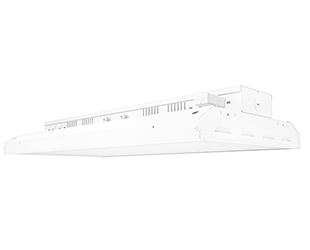

This is a link to the product ARBAY2-90N/LC/E2 ARBAY2-90N/LC/E2
