IVAT3-75LPA740ZU/WS2/LC
Performance
| Watts | 67W |
| Color Temp | 4000K (Neutral) |
| Lumens | 7,485 lm |
| Efficacy | 116.2 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.58A |
| 208V | 0.34A |
| 240V | 0.29A |
| 277V | 0.25A |
| Input Watts | 64.4W |
Dimensions
Weight: 14.8 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-8E31XZ
DLC Product Code: S-8E31XZ
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.81% at 120V, 14.93% at 277V
Power Factor
93.2% at 120V, 91.8% at 277V
Recently Viewed Products
ALED4T105N/D10/WS4
Area Lights 13204 Lumens Aled Type Iv 105W 4000K 0-10V Dimming 120V-277V Pole Mount Wattstopper Sensor 40 Feet Lens Bronze
RDLED2AR8-40N-TW
Recessed Downlights 763 Lumens Rdled2Ar8 2 Inch Adjustable Round 8W 40 Degree Beam Spread 80Cri 4000K 1/2 Inch Trim White Trim Ring
IVAT4-45LWM730WH/7PR
Area Lights 4599 Lumens Ivat4 Type Iv 38W Wall Mount 70Cri 3000K White 347-480V 0-10V Dimming 7-Pin Receptacle
ALED5T78NK/480/PCT4
Area Lights 10251 Lumens Aled Type V 78W 4000K 480V Pole Mount Twistlock Photocell Black

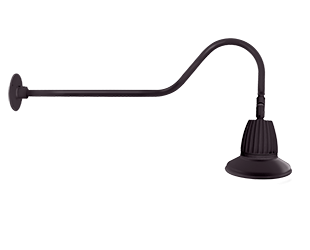

GN2LED26YST11A
