IVAT4-130LWM750KU/7PR
Performance
| Watts | 117W |
| Color Temp | 5000K (Cool) |
| Lumens | 14,322 lm |
| Efficacy | 122.8 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.00A |
| 208V | 0.58A |
| 240V | 0.50A |
| 277V | 0.43A |
| Input Watts | 116.6W |
Dimensions
Weight: 19.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-M36QXE
DLC Product Code: S-M36QXE
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.36% at 120V, 6.76% at 277V
Power Factor
99.8% at 120V, 95.9% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Recently Viewed Products
HALV18L940-FG2-W/BL
Architectural 1402 Lumens Halv Forward Light 25W 90Cri 4000K Frosted Lens With Grill Style 2 White Finish Bi-Level Control
HALV10L940-FG1-W/LC
Architectural 808 Lumens Halv Forward Light 14W 90Cri 4000K Frosted Lens With Grill Style 1 White Finish Lightcloud Controller
HALVS10L935-LW-K/LC
Architectural 395 Lumens Halvs Forward & Up/Down Light 14W 90Cri 3500K Linen Hampton White Lens Black Finish Lightcloud Controller

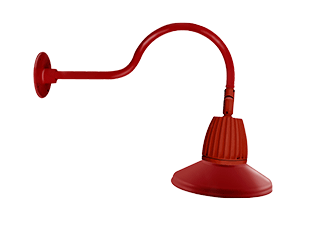

GN1LED26NSSTR
