IVAT5S-75LSF730GU/WS
Performance
| Watts | 67W |
| Color Temp | 3000K (Warm) |
| Lumens | 7,366 lm |
| Efficacy | 113.8 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.58A |
| 208V | 0.34A |
| 240V | 0.29A |
| 277V | 0.25A |
| Input Watts | 64.7W |
Dimensions
Weight: 12.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-9V3SLC
DLC Product Code: S-9V3SLC
Electrical
Driver
Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.33% at 120V, 13.1% at 277V
Power Factor
98.8% at 120V, 93.3% at 277V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Recently Viewed Products
IVAT2-45LWM740WH/WS2
Area Lights 4677 Lumens Ivat2 Type Ii 38W Wall Mount 70Cri 4000K White 347-480V 0-10V Dimming 20 Feet Lens Wattstopper Sensor
TBLED4T100NRG/D10/7PR/PCT
Triboro Xl Type Iv 100W 4000K Neutral Led Dim 7P Receptacle Pct Roadway Gray
HALVS18L940-MC-CU/BL/E2
Architectural 423 Lumens Halvs Forward & Up/Down Light 25W 90Cri 4000K Metallic Spun Copper Lens Copper Finish Bi-Level Control Battery Backup
X17XFU140SF
Floodlights 8947-19158 Lumens X17 Adjustable 140/100/70W Field Adjustable Cct 5000/4000/3000K Slipfitter Bronze

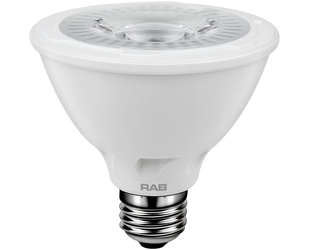

PAR30S-11-940-40D-DIM
