KAI-4T150/480
Performance
| Watts | 150/120/100W |
| Color Temp | 3000K/4000K/5000K |
| Lumens | 14989-22796 lm |
| Efficacy | 136.2-165.3 lm/W |
| Color Accuracy | 83-85 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 97.8-153.6W |
Dimensions
Weight: 9.4 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
150/120/100W (factory default 150W)
Color Temperature Adjustable:
3000K, 4000K and 5000K (factory default 4000K)
150/120/100W (factory default 150W)
Color Temperature Adjustable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class1, 480V, 50/60 Hz:
150W: 480V: 0.31A
120W: 480V: 0.25A
100W: 480V: 0.22A
150W: 480V: 0.31A
120W: 480V: 0.25A
100W: 480V: 0.22A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
10 kV
Aux Power Supply
Yes
Dim to Off
Yes
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
BUG Rating
150W: B3-U0-G3
120W: B3-U0-G3
100W: B3-U0-G3
120W: B3-U0-G3
100W: B3-U0-G3
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
IK Rating
IK08 Protected against 5 joules of impact. Equivalent to the impact of a 3.75 lbs. (1.7kg) mass dropped from 11.8" (300mm) above the impacted surface.
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Die-cast aluminum
Tilt Increment
Rotates in 2.5 degree increments
Effective Projected Area
EPA = 0.45
Lens
Clear polycarbonate lens
Vibration Rating
3G vibration rating per ANSI C136.31
Gaskets
High-temperature silicone
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Adjustable universal pole mount
Other
10-Year Limited Warranty
The RAB 10-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
GN2LED26NSAC11A
Decorative 1675 Lumens Gooseneck 26W 4000K 35 Inches Arm Angled Cone Spot Reflector 11 Inches Bronze
RDLED2S8-40Y-TLW
Recessed Downlights 567 Lumens Rdled2S8 2 Inch Square 8W 40 Degree Beam Spread 80Cri 3000K Trimless White Trim Ring

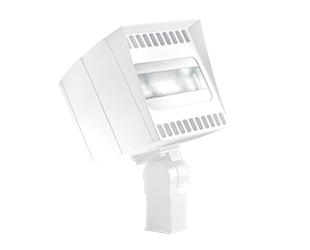

CANVAS78SFNW/PCT
