L2XW
Performance
| Watts | 20W |
| Color Temp | 3000K-5000K |
| Lumens | 2,000/2,072/2,094 lm |
| Efficacy | 102/105.2/105.8 lm/W |
| Color Accuracy | 81/84/84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.20A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 19.6/19.7/19.8W |

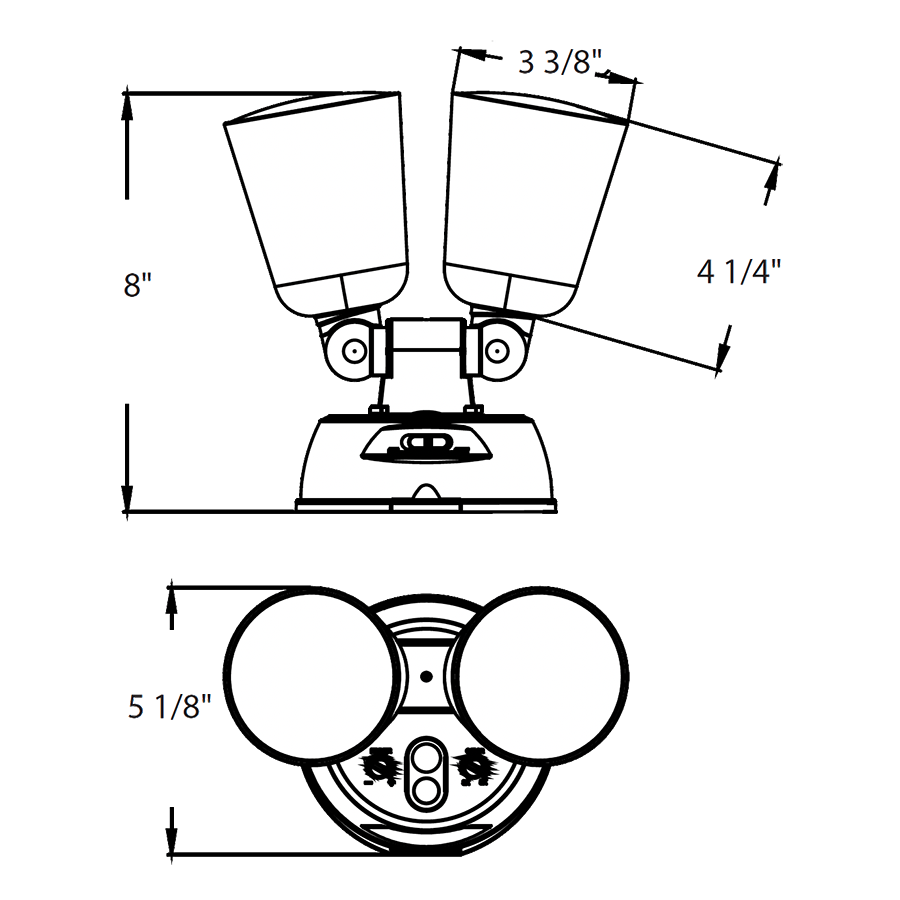

Dimensions
Weight: 1.4 lbs
Technical Specifications
Field Adjustability
Color Tunable
3 discrete color temperatures
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP65 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: S-PST1KW
DLC Product Code: S-PST1KW
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
20W: Constant Current, Class 1, 120V, 60 Hz,120V: 0.20A
THD
13.37% at 120V
Power Factor
97.9% at 120V
Dim to Off
No
Aux Power Supply
No
Photocell
Integrated photocell included with on/off switch (factory default: off)
Sensor Settings
Surge Protection
1 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 122°F (50°C)
Housing
Polycarbonate
Reflector
Polycarbonate
Effective Projected Area
2000 square foot
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Wall mount
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
