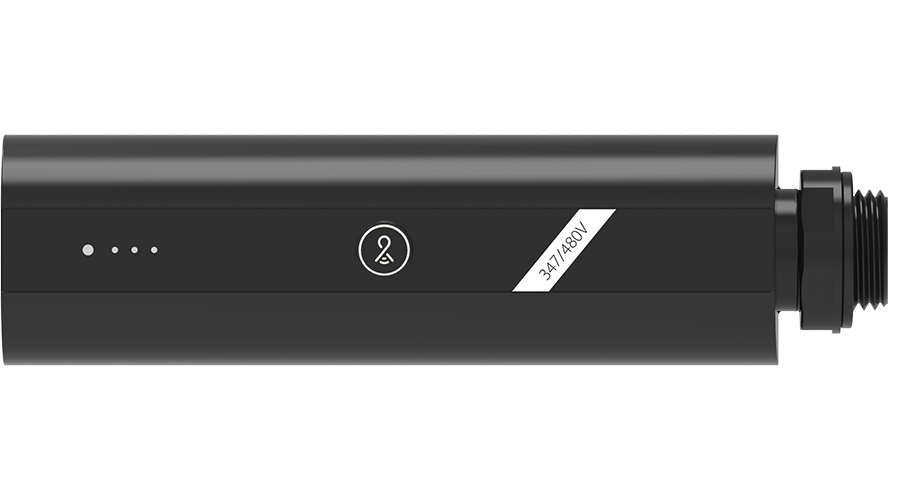

LCCONTROL/480/B
LCCONTROL/480/B
- Wireless switching, 0-10V dimming, and power monitoring for 480V applications up to 2A
- Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD
- Cylindrical design for easy installation at threaded junction boxes
- Cloud-based management - no software to install or maintain
- Connects to Lightcloud Gateway and other Lightcloud devices
- Connects via a secure, encrypted, and self-healing 2.4 GHz wireless mesh network
- Repeater Mode to extend range of wireless mesh network
- If power to Controller is lost, notification is shown in the Lightcloud application
- If communication is lost, Controller can fall back to a customizable emergency state
Dimensions
Weight: 0.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for indoor and outdoor use.
Plenum Rated
Plenum Rated
IP Rating
Ingress protection rating of IP66 for dust and water
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Can dim as low as 1%. Actual dimming range is defined by driver.
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input Voltage
347/480VAC
Frequencies
50/60 Hz
Electrical Ratings
10ma @ 347VAC
10ma @ 480VAC
10ma @ 480VAC
Load Switching Capacity
LED, magnetic 347VAC, 2A
LED, magnetic 480VAC, 2A
LED, magnetic 480VAC, 2A
Wireless Range
Obstructions
100 ft
Line of Sight
1000 ft
Construction
Operating Temperature Range
-40°C to 60°C
Storage Temperature Range
-40°C to 80°C
Wire Gauge
3x6 in 18AWG 600V
3x12 in 22AWG 600V
3x12 in 22AWG 600V
Installation
Mounting
Junction box for both indoor or outdoor. Lighting panel, trough or fixture.
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
