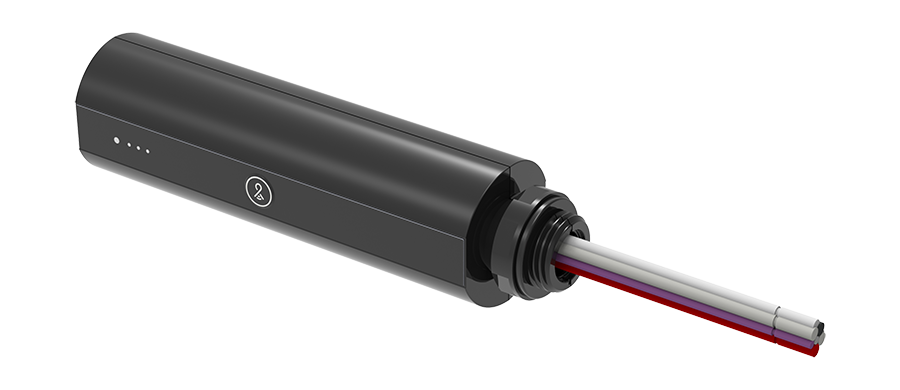

LCCONTROL20/D10
LCCONTROL20/D10
- Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD
- Cylindrical design for easy installation at threaded junction boxes
- Cloud-based management - no software to install or maintain
- Connects to Lightcloud Gateway and other Lightcloud devices
- Connects via a secure, encrypted, and self-healing 2.4 GHz wireless mesh network
- Repeater Mode to extend range of wireless mesh network
- If power to Controller is lost, notification is shown in the Lightcloud application
- If communication is lost, Controller can fall back to a customizable emergency state

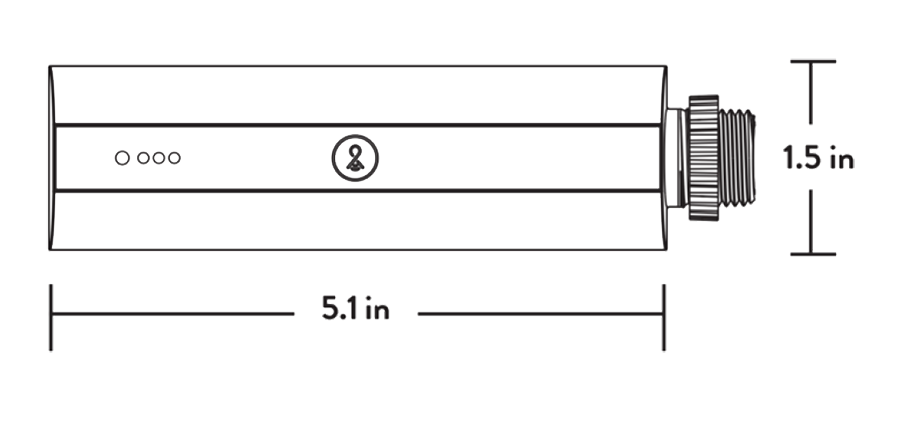

Dimensions
Weight: 0.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for indoor and outdoor use. Suitable for wet and damp locations.
Plenum Rated
Plenum Rated
IP Rating
Ingress protection rating of IP66 for dust and water
Electrical
Installation
All Lightcloud components should be installed by a licensed electrician in accordance with local codes.
Input
120-277VAC, 50/60Hz
<2W (Standby - 4W Active)
<2W (Standby - 4W Active)
Maximum Switched Load Ratings
For Control of Magnetic, Electronic Ballast or LED
277VAC: 20A Magnetic/Resistive
240VAC: 5A Tungsten/Electronic, 20A FLA/60 LRA, 2HP
120VAC: 15A Tungsten/Electronic, 1HP
277VAC: 20A Magnetic/Resistive
240VAC: 5A Tungsten/Electronic, 20A FLA/60 LRA, 2HP
120VAC: 15A Tungsten/Electronic, 1HP
Operating Temperature
-40°C to 40°C
Installation
Mounting
Junction box for both indoor or outdoor. Lighting panel, trough or fixture.
Construction
Overall Dimensions
1.55" diameter, 5.75" length
1/2" NPT Mount, Male
16AWG pigtails
1/2" NPT Mount, Male
16AWG pigtails
Wireless Range
Line of Sight
1,000 ft
Obstructions
100 ft
Other
Warranty
10-year full hardware warranty with 100% repair/replacement coverage for all properly installed devices. See Lightcloud Warranty Terms.
