LCDIMMER/PD/G

Spec Sheet Instructions Spec Sheet

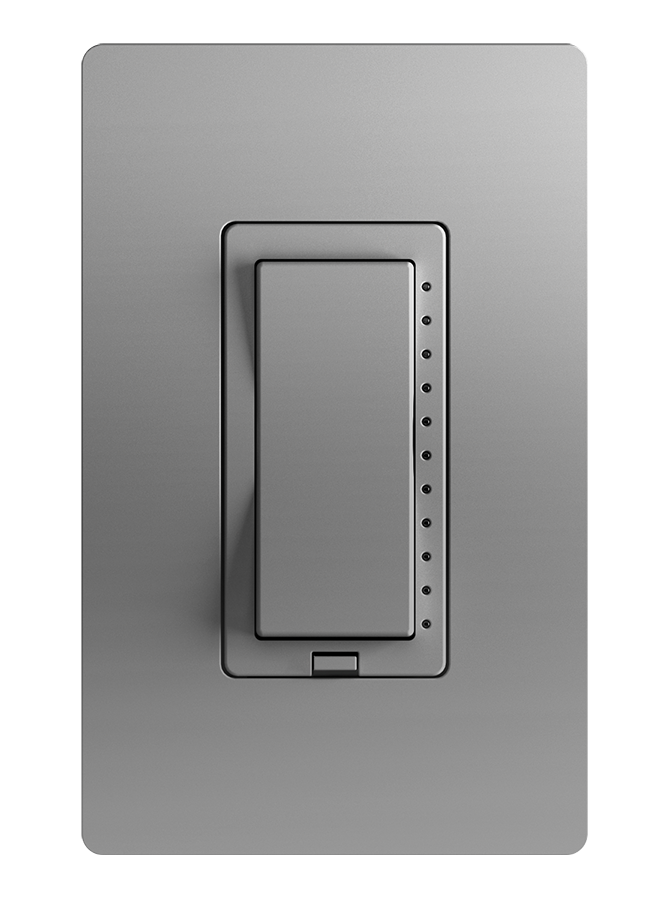

LCDIMMER/PD/G

In-wall device for switching, dimming and scene control

Switches/dims local load (ELV/MLV)

Available in White, Black, Ivory, Light Almond and Gray

Dimming features both fade on/off and rapid full-on

Assign scenes to top and/or bottom buttons

Set the max trim level for a zone or fixture to save energy

Use together with other Lightcloud Controller or Sensor devices

Also available with blank face plate for plenum applications

View Technical Specs

View Price & Availability

Dimensions

Weight: 0.2 lbs

Technical Specifications

Compliance

UL Listed

UL1472 Indoor use only

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

Installation

All Lightcloud components should be installed by a licensed electrician in accordance with local codes.

Input Voltage

120VAC

Frequencies

50/60 Hz

Electrical Ratings

60 mA

Load Switching Capacity

450W LED (reverse phase)
450W Incandescent (reverse phase)
450W Magnetic Low Voltage (symmetric forward phase)
450W Electronic Low Voltage (reverse phase)
450W Dimmable CFL (reverse phase)

Storage Temperature Range

-40°F to 185°F (-40°C to 85°C)

Construction

Operating Temperature Range

0°C to 40°C

Maximum Relative Humidity

85%

Wire Gauge

Black (Line - 16AWG)
White (Neutral - 16AWG)
Red (Load - 16AWG)
Green (Earth - 18AWG)

Wireless Range

Line of Sight

1000 ft
