LCLCSENSE/SH
LCLCSENSE/SH
- Passive infrared (PIR) motion detector
- Control individual or groups of Lightcloud or Lightcloud Blue devices
- Occupancy and vacancy sensing with adjustable sensitivity and timeouts
- Communicates over secure wireless mesh network - no internet required
- Requires compatible Lightcloud or Lightcloud Blue Controller
- Motion detector and daylight sensor that can switch and dim both local and remote circuits.

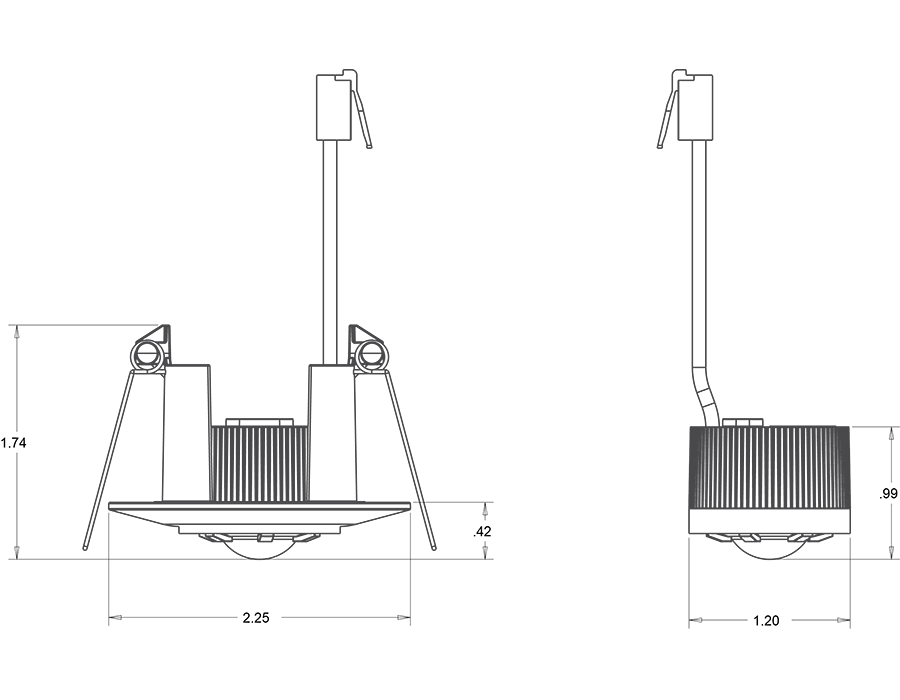

Dimensions
Technical Specifications
Performance
Product Type
Wired Sensor
Description

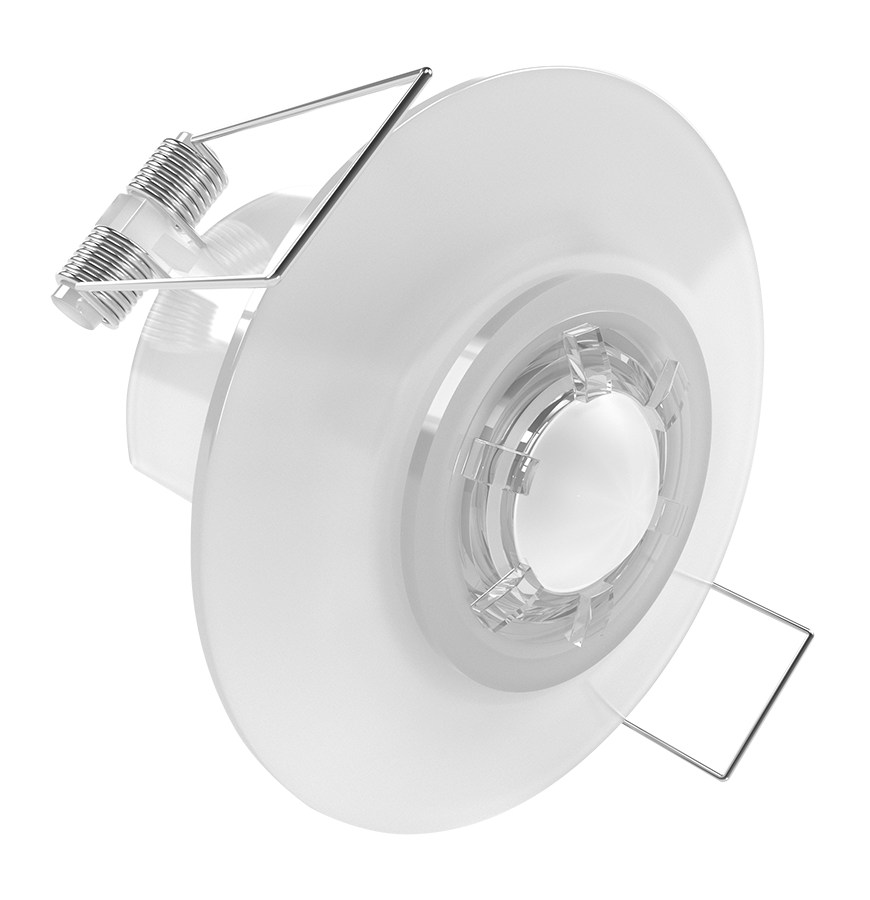

Passive infrared-technology standalone motion detector and daylight sensor that can switch and dim both local and remote circuites. The sensor requires a compatible Lightcloud or Lightcloud Blue Controller.
Lightcloud
Lightcloud
Lightcloud and Lightcloud Blue are two separate wireless network lighting control platforms. Devices can be quickly and easily commissioned for residential and large commercial applications using a mobile or web app. Each device in a system can communicate with any other device for simple, wireless control.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
Gateway Required
Lightcloud: Yes
Lightcloud Blue: No
Lightcloud Blue: No
Communication Protocol
Lightcloud: Zigbee
Lightcloud Blue: Bluetooth Mesh
Lightcloud Blue: Bluetooth Mesh
Range
Lightcloud: Lightcloud: Up to 100 ft between standard building materials; Up to 1,000 ft clear line of sight.
Lightcloud Blue: Lightcloud Blue: Up to 60 ft between standard building materials; Up to 200 ft clear line of sight.
Lightcloud Blue: Lightcloud Blue: Up to 60 ft between standard building materials; Up to 200 ft clear line of sight.
