LOS800AL/120
LOS800AL/120
- Sensitive 180° view passive infrared motion detector keeps lights on only when rooms are in use
- LED detection indicator
- Tough, vandal resistant lens
- Fits decorator wall plates
- Control panel cover only removable with wall plate to prevent tampering
- Manual off/auto switch
- Vandal proof sensor for schools, gyms and high abuse areas

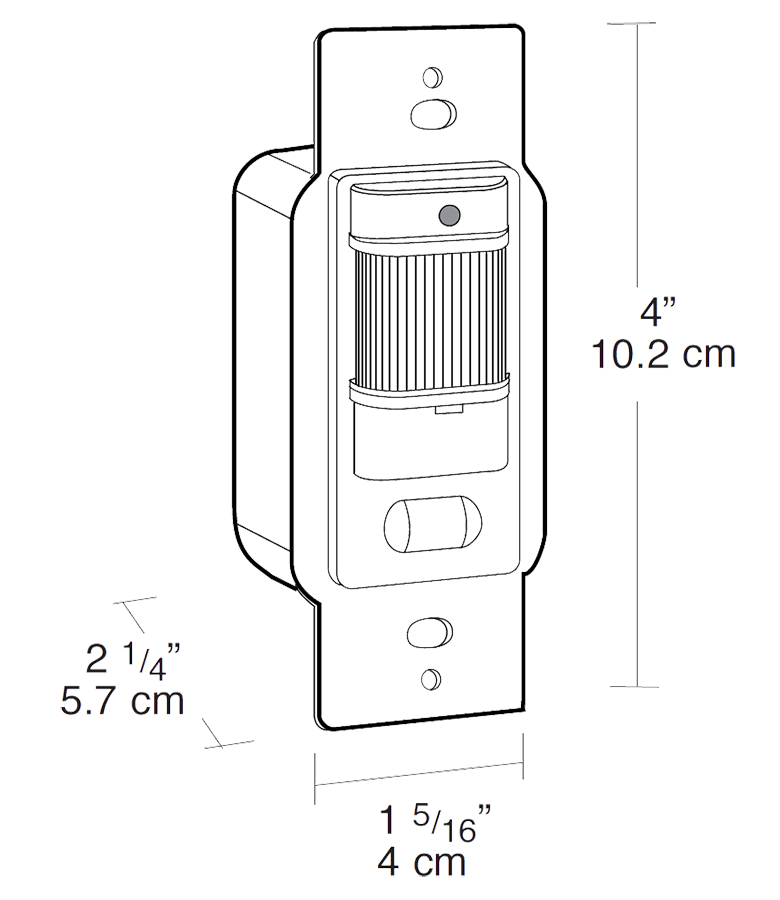

Dimensions
Weight: 0.3 lbs
Technical Specifications
Compliance
UL Listed
For indoor applications. Tuff Dome & Smart Box are UL Listed for wet locations.
Construction
Easy Installation
Relay and sensor all in one reduces installation cost. Compatible with program start ballasts. Not compatible with instant start ballasts. LED testing and operation indicator.
Sensor Settings
Maximum Versatility
Adjustable time delay. Sensor detection pattern can be customized. No minimum load requirement. Can be wired in parallel.
Other
Patents
RC sensor and fixture designs are protected under Canadian and International Intellectual Property laws
1-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of one (1) year from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
GN2LED13YSAD11S
Decorative 668 Lumens Gooseneck 13W 3000K 35 Inches Arm Angled Dome Spot Reflector 11 Inches Silver
GUSJR4-40-835WU/TW
Strips & Wraps 4662 Lumens Gusjr4 4 Feet 40W 80Cri 3500K 0-10V Dimming 120V-277V White Through Wire
HALVS18L927-MA-W
Architectural 286 Lumens Halvs Forward & Up/Down Light 25W 90Cri 2700K Mirage Bronze Lens White Finish
GN2LED13YSAD11S
Decorative 668 Lumens Gooseneck 13W 3000K 35 Inches Arm Angled Dome Spot Reflector 11 Inches Silver

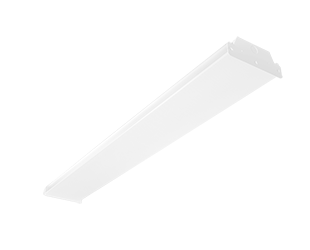

GUSJR4-40-835WU/TW
