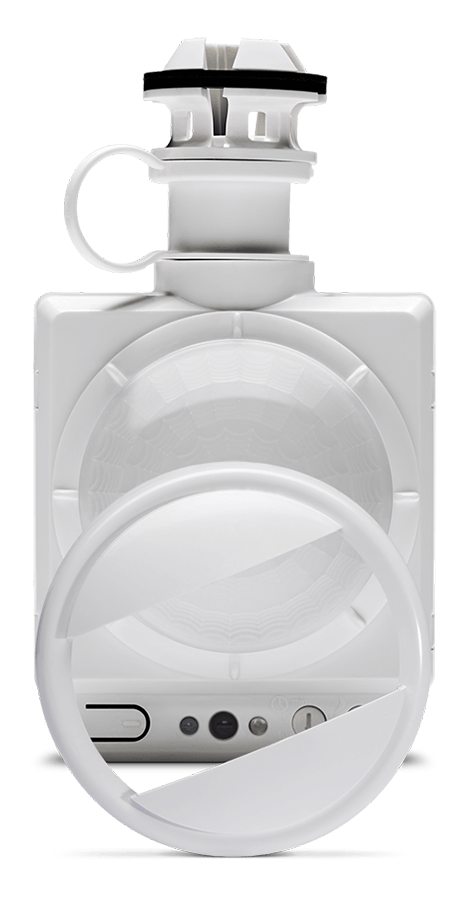

LOSBAY800
LOSBAY800
- Fully compatible with BAYLED and AISLED fixtures
- Commercial grade
- For assistance in ordering please contact RAB customer service 1 888-RAB-1000
Technical Specifications
Performance
Description
High Bay occupancy sensor for use with BAYLED, AISLED and RBAY fixtures.
Compliance
UL Listed
Indoor use only
Installation
Mounting Height
Up to 40 ft
Sensor Settings
Time Delay Setting
5 seconds to 30 minutes
Electrical
Rating
120VAC thru 347VAC, 50/60 Hz
Maximum Load
120VAC, 60Hz: 0-1000VA, 1/4 hp, 230VAC, 50/60Hz: 0-1000VA, 277VAC, 60Hz: 0-1200VA, 1/4 hp, 347VAC, 60Hz: 0-1500VA, 1/4 hp. Compatible with tungsten, electronic and magnetic ballasts, fluorescent and LED.
Photocell
1-300fc Light level adjustable setting
Fluorescent Switching Capacity
6.67 Amps, 785W CFL @ 120 Volts 0.98pF T5HO ballast; 4.33 Amps, 1175W LED @ 277 Volts 0.98pF T5HO ballast.
Operating Temperature
32°F to 158°F (0°C to 70°C)
Power Consumption
0.2W
Optical
Coverage Pattern
360° White Lens (installed) - 100 ft diameter when mounted at 40 ft, Aisle Lens (included as option) - 100 ft x 50 ft wide.
Other
Warranty (Years)
5-years
Construction
Relative Humidity
5-95% non condensing
