LOT2T110N/480/D10/UPA/HS
LOT2T110N/480/D10/UPA/HS large main
DISCONTINUED
  • Lightweight design and low EPA minimize pole load
  • Best-in-class 5-G vibration rating
  • 100,000-hour LED lifespan
 View Technical Specs
Performance
Watts 110W
Color Temp 4000K (Neutral)
Lumens 14,691 lm
Efficacy 149.8 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 98.1W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Electrical
Driver
Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.21A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.45% at 480V
Power Factor
92% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.
Construction
Effective Projected Area
EPA = 0.8
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs

Recently Viewed Products

This is a link to the product WPX2 WPX2
Wpx2 80/60/40W 3000K/4000K/5000K Photocell Bronze
This is a link to the product LOT2T110W/D10/BL LOT2T110W/D10/BL
Area Lights 15153 Lumens Lotblaster 110W Type Ii 0-10V Dimming 120V-277V Bi-Level White

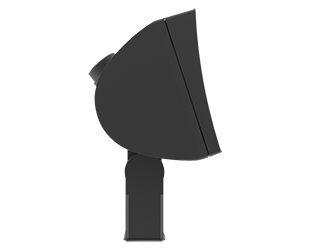

This is a link to the product FXLED105SFY/7PRS FXLED105SFY/7PRS
