LOT2T110NW/D10/UPA/5PR
LOT2T110NW/D10/UPA/5PR large main
DISCONTINUED
  • Lightweight design and low EPA minimize pole load
  • Best-in-class 5-G vibration rating
  • 100,000-hour LED lifespan
 View Technical Specs
Performance
Watts 110W
Color Temp 4000K (Neutral)
Lumens 14,983 lm
Efficacy 141.5 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.93A
208V 0.54A
240V 0.47A
277V 0.40A
Input Watts 105.9W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PE1G41Z1
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.93A, 208V: 0.54A, 240V: 0.47A, 277V: 0.40A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
4.79% at 120V, 14.29% at 277V
Power Factor
99.6% at 120V, 93.3% at 277V
5-Pin Receptacle
ANSI C136.41 5-pin receptacle, compatible with wireless control systems
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.
Construction
Effective Projected Area
EPA = 0.8

Recently Viewed Products

This is a link to the product IVAT4-75LSF750KU/WS4 IVAT4-75LSF750KU/WS4
Area Lights 7429 Lumens Ivat4 Type Iv 67W Slipfitter Mount 70Cri 5000K Black 120V-277V 0-10V Dimming 40 Feet Lens Wattstopper Sensor
This is a link to the product AL22-300 AL22-300
Al22 Area Light 300/240/200W Large 3000/4000/5000K T3/T4/T5 Adjustable Bronze
This is a link to the product CLED2X13MS2/BL CLED2X13MS2/BL
Indoor Motion Sensors 2006 Lumens Cled 26W 5000K Bilevel Two Mini Sensors Bronze
This is a link to the product HALVS10L935-LW-K/LC HALVS10L935-LW-K/LC
Architectural 395 Lumens Halvs Forward & Up/Down Light 14W 90Cri 3500K Linen Hampton White Lens Black Finish Lightcloud Controller

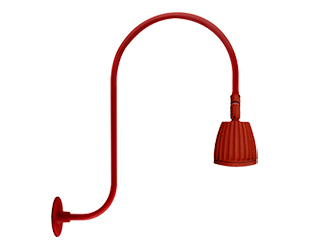

This is a link to the product GN3LED13YSR GN3LED13YSR
