LOT2T110Y/480/D10/UPA/5PR
LOT2T110Y/480/D10/UPA/5PR large main
DISCONTINUED
  • Lightweight design and low EPA minimize pole load
  • Best-in-class 5-G vibration rating
  • 100,000-hour LED lifespan
 View Technical Specs
Performance
Watts 110W
Color Temp 3000K (Warm)
Lumens 13,696 lm
Efficacy 138.6 lm/W
Color Accuracy 73 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 98.8W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PYMXUDMA
Electrical
Driver
Constant Current, Class 2, 480V, 50/60 Hz, 480V: 0.21A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
5.45% at 480V
Power Factor
92% at 480V
5-Pin Receptacle
ANSI C136.41 5-pin receptacle, compatible with wireless control systems
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type II distribution is meant for lighting large areas, located by the roadside. Typically found on wide walkways, on ramps, entrace roadways and bike paths.
Construction
Effective Projected Area
EPA = 0.8

Recently Viewed Products

This is a link to the product LOT4T160N/D10/UPA/7PR LOT4T160N/D10/UPA/7PR
Area Lights 19265 Lumens Lotblaster 160W 4000K Type Iv 0-10V Dimming 120V-277V Universal Pole Adapter 7-Pin Receptacle Bronze
This is a link to the product CDLED6WD-26W-50D927-S CDLED6WD-26W-50D927-S
Cylinders 2127 Lumens Cdled 26W 6 Inches Wall Direct(Downlight) Only 90Cri 2700K Matte Silver
This is a link to the product WP2LED49L-730U/PCS2 WP2LED49L-730U/PCS2
Wall Packs 5049 Lumens Wp2 34W 4900 Lumens 70Cri 120V-277V 277V Swivel Photocell Bronze
This is a link to the product HALVS18L930-CW-S/BL/E2 HALVS18L930-CW-S/BL/E2
Architectural 667 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3000K Crushed Polar White Silver Finish Bi-Level Control Battery Backup

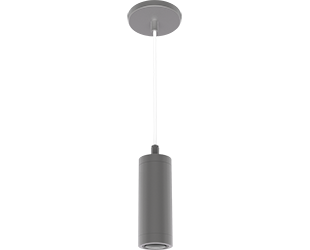

This is a link to the product CDLED2PC-10W-20D940-S CDLED2PC-10W-20D940-S
