LOT3T160Y/D10/UPA/WS4
DISCONTINUED
LOT3T160Y/D10/UPA/WS4
- Lightweight design and low EPA minimize pole load
- Best-in-class 5-G vibration rating
- 100,000-hour LED lifespan
Performance
| Watts | 160W |
| Color Temp | 3000K (Warm) |
| Lumens | 22,436 lm |
| Efficacy | 139.9 lm/W |
| Color Accuracy | 76 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.35A |
| 208V | 0.78A |
| 240V | 0.67A |
| 277V | 0.59A |
| Input Watts | 160.4W |
Dimensions
Weight: 20.9 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.35A, 208V: 0.78A, 240V: 0.67A, 277V: 0.59A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.3% at 120V, 13.67% at 277V
Power Factor
99.5% at 120V, 93.2% at 277V
Surge Protection
L-N 4 kV; L-L, L-GND 6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type III distribution is meant to be located near the side of an area, projecting the light outward to fill the area. Ideal for roadways, general parking areas, lighting applications and where a large pool of light is required.
Construction
Effective Projected Area
EPA = 0.8
Recently Viewed Products
A34T5XLWM/480/LCBS/MVS
A34-Xl T5 340/270/220W 3000K/4000K/5000K Wall Mount 480V Lightcloud Blue Mvs Sensor Bronze

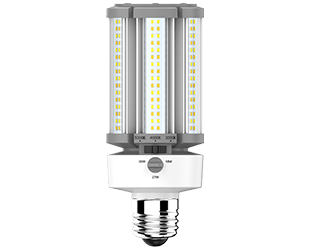

HIDFA-36S-E26-8CCT-BYP/5SP
