LOT4T160W/D10
LOT4T160W/D10 large main
DISCONTINUED
  • 100,000-hour LED lifespan
  • Type IV distribution
 View Technical Specs
Performance
Watts 160W
Color Temp 5000K (Cool)
Lumens 20,839 lm
Efficacy 130.8 lm/W
Color Accuracy 77 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 1.35A
208V 0.78A
240V 0.67A
277V 0.59A
Input Watts 159.3W
Dimensions
Link to Dimension Drawing

Weight: 20.9 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PN5S7AQ2
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.35A, 208V: 0.78A, 240V: 0.67A, 277V: 0.59A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
8.37% at 120V, 13.53% at 277V
Power Factor
99.5% at 120V, 93.2% at 277V
Surge Protection
L-N 4 kV; L-L, L-GND 6 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) produces a semicircular distribute, and is especially suited for mounting on sides of buildings or walls and perimeter of parking areas
Construction
Effective Projected Area
EPA = 0.8

Recently Viewed Products

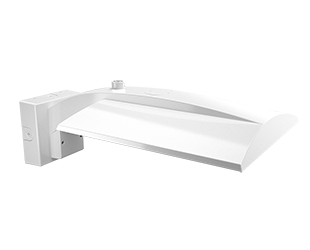

This is a link to the product IVAT4-100LWM750WU/LC IVAT4-100LWM750WU/LC
